U500.DA0.2-IA1B.72F
Baumer

U500.DA0.2-IA1B.72F

Alt: 11200630

$496.09

Ultrasonic Distance Measuring Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, 4-20mA Current Output, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

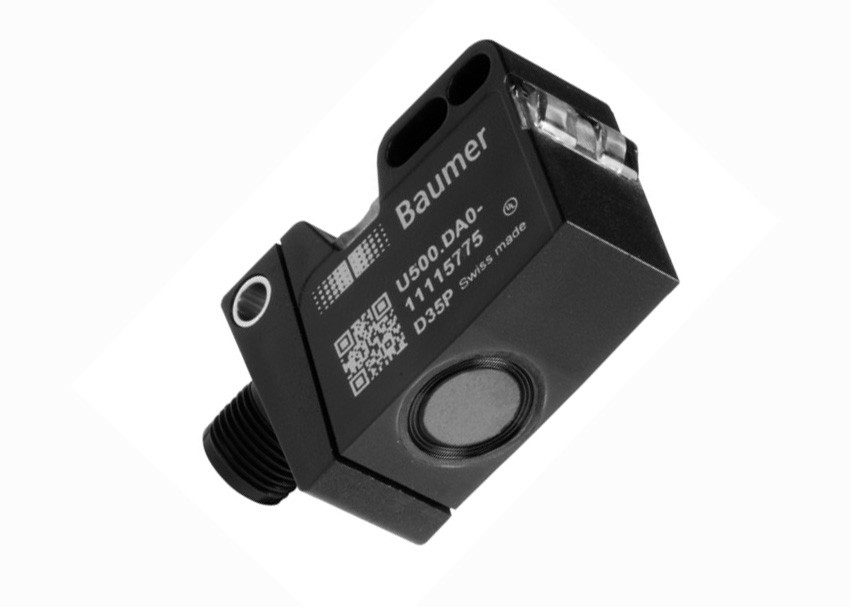

Baumer U500 ultrasonic distance sensor with analog output and teach-in
Description

The Baumer U500 ultrasonic distance measuring sensor measures the distance to an object using ultrasound and provides an analog output signal.

Key Features

  • Scanning range 100-1000 mm or 20-1000 mm depending on model
  • Adjustment via qTeach, line-teach or IO-Link depending on model
  • 0-10V voltage output depending on model
  • 4-20mA current output depending on model
  • 4-20mA/0-10V voltage/current output depending on model
  • IO-Link depending on model
  • Supply voltage 12-30 VDC
  • Connection via 2 m PUR cable, M12 5-pin connector or M12 connector depending on model
  • 18 x 45 x 32 mm rectangular housing in plastic (ASA, PMMA)
  • Operating temperature -25 to +60 °C or -25 to +65 °C depending on model
  • Protection class IP67

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

U500.DA0.2-UAMJ.72F

Ultrasonic Distance Measuring Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, IO-Link, 0-10V Voltage Output, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$496.09

Baumer

U500.DA0.2-IAMJ.72F

Ultrasonic Distance Measuring Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, IO-Link, 4-20mA Current Output, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$496.09

Baumer

U500.DA0.2-UA1B.72F

Ultrasonic Distance Measuring Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, 0-10V Voltage Output, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$496.09

Baumer

UR18.DA0.2-IA1B.9SF

Ultrasonic Distance Measuring Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, 4-20mA Current Output, M12 5-Pin Connector, M18 x 64mm Cylindrical Threaded, Stainless Steel (V2A)/TR90 Housing, -25 to +65°C, IP69

$496.09

Baumer

U500.DA0-IA1B.72CU

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 4-20mA Current Output, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +60°C, IP67

$488.40
