UR18.DA0-UA1B.7BO
UR18.DA0-UA1B.7BO

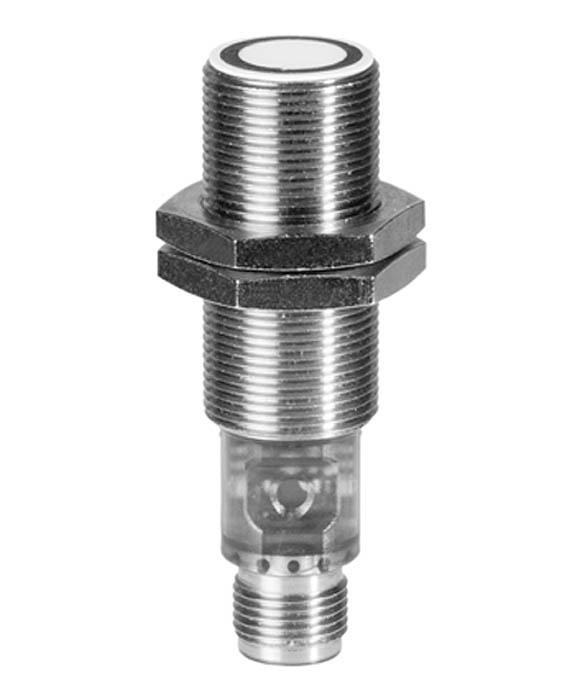

Ultrasonic Distance Measuring Sensor
Baumer

UR18.DA0-UA1B.7BO

Alt: 11119994

$499.00

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, Voltage Output, M12 Connector, 18 x 64mm, Cylindrical Threaded, Brass Nickel Plated / TR90 Housing, -25 to +70°C Operating Temperature, -40 to +85°C Stora

Minimum Purchase:
1 unit
Adding to cart… The item has been added
UR18.DA0-UA1B.7BO
Ultrasonic Distance Measuring Sensor
UR18.DA0-UA1B.7BO
Ultrasonic Distance Measuring Sensor
Description
Ultrasonic Distance Measuring Sensor

Features Include:

  • Scanning Range: 100 - 1000 mm
  • Scanning Range Close Limit Sdc: 100 - 1000 mm
  • Repeat Accuracy: <0.5 mm
  • Resolution: <0.3 mm
  • Temperature Drift: < 2 % of distance to target So
  • Voltage Supply Range +Vs: 12 -30 VDC
  • Adjustment: qTeach
  • connector M12
  • Operating Temperature: -25 - 70 °C
  • Protection Rating: IP 67
