UA30CAD35NGTI
Alt: Manufacturer Minimum Order 5 Pieces
$517.60
Ultrasonic Diffuse Sensor, Ø30mm, PBT, 12(15)-30VDC, 250-3500mm Range, 4-20mA, NPN, 2mCable, Manufacturer Minimum Order 5 Pieces, Price per Piece
- Minimum Purchase:
- 5 units
Description

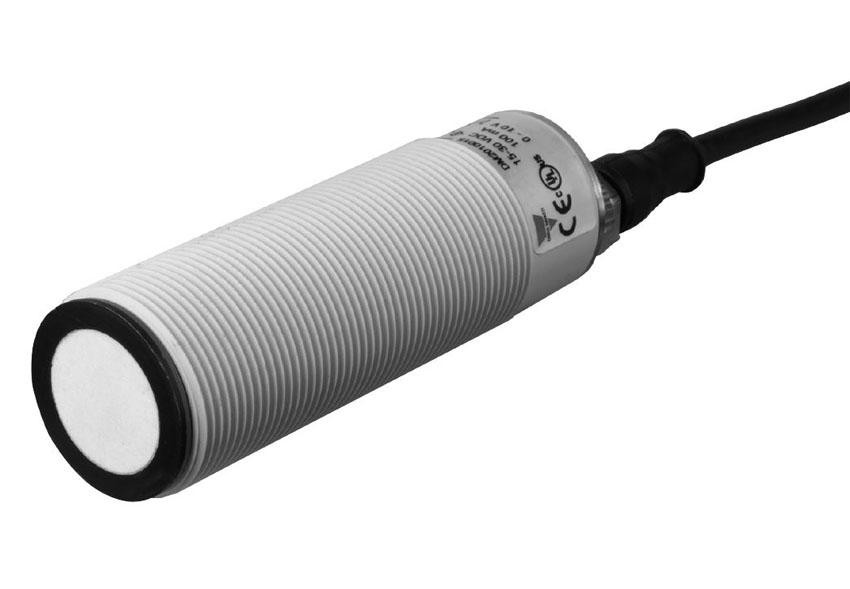

Ultrasonic Diffuse Sensor, Ø30mm, PBT, 12(15)-30VDC, 250-3500mm Rng, 4-20mA, NPN, 2mCable
Features Include:
- Cylindrical M30 PBT housing
- Sensing distance: 250-3500 mm
- Power supply: 12 (15) to 30 VDC
- Outputs: 0-10 VDC or 4-20 mA and one switching output NPN or PNP.
- Linearity error 0.5%
- Repeatability 0.2%
- Beam angle: ±6°
- Protection: Short-circuit, reverse polarity and overvoltage
- Protection degree IP 67, NEMA 4X
- 2 m cable or M12 plug
