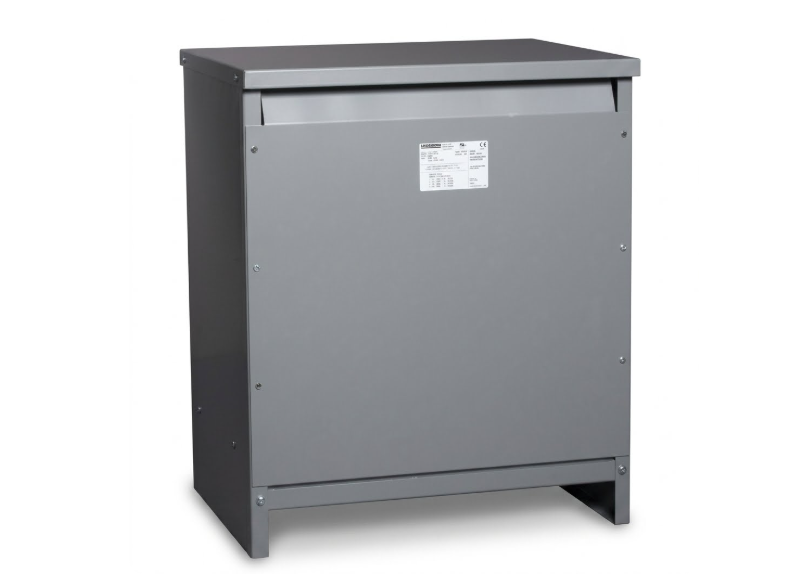

Transformer, 15kVA, Primary: 240x480VAC, Secondary: 120/240VAC, 50/60Hz, with FCAN/FCBN Voltage Taps, Electrostatic Shield, Epoxy-Silica Encapsulated, UL Class 180C Insulation, NEMA Type 3R, UL/cUL, 85 Series
SKU:
85-1470
Weight:
270.00 LBS
Minimum Purchase:
1 unit
Encapsulated protection for harsh industrial environments
The Dongan 85 Series ISO-Shield single phase transformer is epoxy-silica encapsulated for use in harsher commercial and industrial environments where airborne contaminants can affect ventilated transformers.
Key Features
Electrostatic shield between primary and secondary windings for cleaner output voltage
Epoxy-silica encapsulated core and coil construction
UL Class 180°C insulation system
NEMA Type 3R wall or floor mount enclosure
Multiple knockouts and ground studs for bonding compatibility
