$2,109.00
Transformer, 5kVA, Primary: 240x480VAC, Secondary: 120/240VAC, 50/60Hz, with FCAN/FCBN Voltage Taps, Electrostatic Shield, Epoxy-Silica Encapsulated, UL Class 180C Insulation, NEMA Type 3R, UL/cUL, 85 Series
- Weight:
- 89.00 LBS
- Minimum Purchase:
- 1 unit
Description

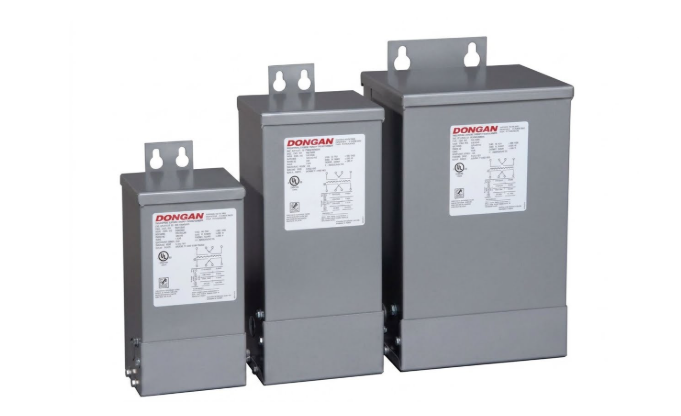

The Dongan 85 Series ISO-Shield single phase transformer is epoxy-silica encapsulated for use in harsher commercial and industrial environments where airborne contaminants can affect ventilated transformers.
Key Features
- Electrostatic shield between primary and secondary windings for cleaner output voltage
- Epoxy-silica encapsulated core and coil construction
- UL Class 180°C insulation system
- NEMA Type 3R wall or floor mount enclosure
- Multiple knockouts and ground studs for bonding compatibility
Certifications
- UL and cUL Listed
