80-5035
Dongan

80-5035

Alt: 80-5035

$836.80

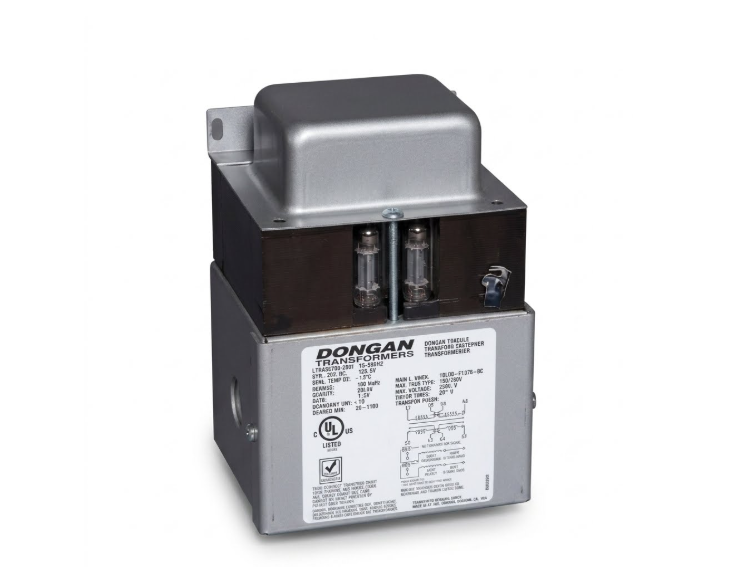

Transformer, 1kVA, Primary: 600VAC, Secondary: 120/240VAC, 50/60Hz, UL Class 180C Insulation, NEMA Type 1, Wall Mount, Ventilated, UL/cUL, 80 Series

Weight:
29.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Ventilated general purpose transformer built for demanding loads
Description

The Dongan 80 Series single phase transformer extends Dongan's general purpose ventilated line to larger kVA ratings for commercial and industrial power distribution.

Key Features

  • Wall mount, ventilated NEMA Type 1 enclosure for indoor use
  • UL Class 180°C insulation system
  • Multiple knockouts for convenient conduit entry
  • Ground stud provided for bonding compatibility

Certifications

  • UL and cUL Listed
