76-3-704SH
Dongan

76-3-704SH

Alt: 76-3-704SH

$2,240.43

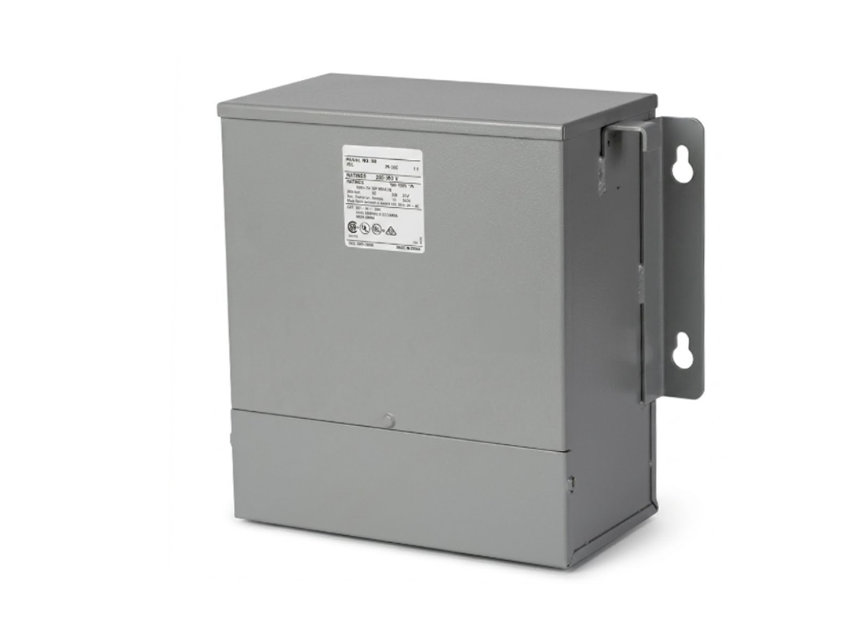

Transformer, 3kVA, Primary: 208VAC, Secondary: 480Y/277VAC, 60Hz, 3 Phase, Copper Wound, 115C Temperature Rise, 200C Insulation System, Electrostatic Shield, Epoxy-Silica Encapsulated, NEMA Type 3R, UL/cUL, 76 Series

Weight:
140.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Encapsulated protection for demanding three phase applications
Description

The Dongan 76 Series large-capacity encapsulated transformer brings the benefits of epoxy-silica encapsulation to higher kVA three phase applications, ideal for harsher environments where airborne contaminants can affect ventilated equipment.

Key Features

  • Copper wound with a 115°C temperature rise and 200°C insulation system
  • Electrostatic shield between primary and secondary windings
  • Epoxy-silica encapsulated construction
  • NEMA Type 3R indoor/outdoor enclosure

Certifications

  • UL and cUL Listed
