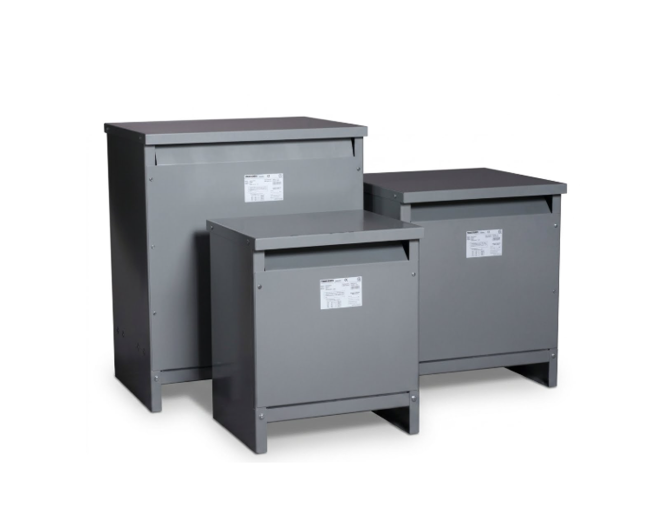

Transformer, 225kVA, Primary: 480VAC, Secondary: 208Y/120VAC, 60Hz, 3 Phase, Electrostatic Shield, Aluminum Windings, UL Class 220C Insulation, NEMA Type 3R Ventilated Floor Mount, DOE 2016 Compliant, UL/cUL, 63/73 Series (Vanguard)
SKU:
73-63225
Weight:
1,315.00 LBS
Minimum Purchase:
1 unit
DOE 2016 compliant transformer that lowers energy costs over time
The Dongan Vanguard 63/73 Series three phase transformer is engineered to meet DOE 2016 energy efficiency standards, reducing energy losses versus previous designs while lowering total cost of ownership.
Key Features
Electrostatic shield between primary and secondary windings for cleaner output voltage
Aluminum windings connect to bus bar style terminations with NEMA standard holes
UL Class 220°C insulation system
NEMA Type 3R ventilated, floor mount enclosure for indoor/outdoor use
Meets DOE 2016 minimum efficiency requirements
120V lighting tap available on select kVA ratings, limited to 5% of nameplate rating
