63-2934SH
Dongan

63-2934SH

Alt: 63-2934SH

$5,605.00

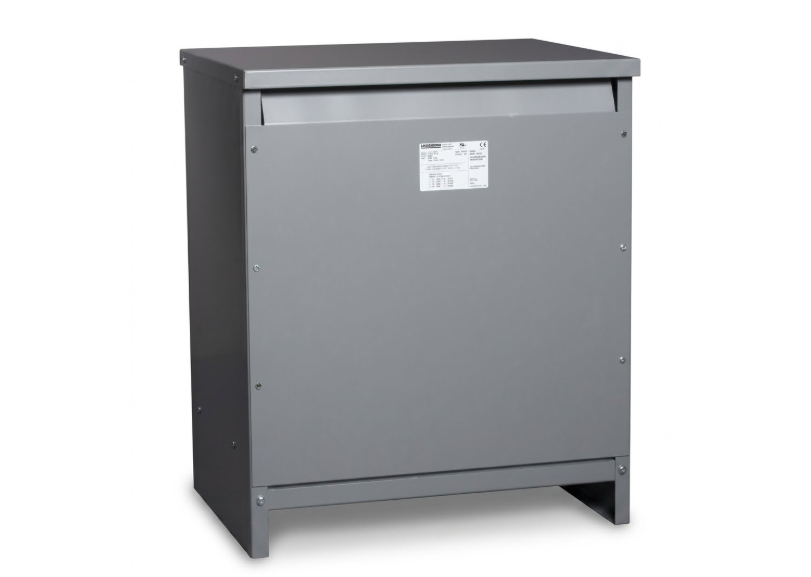

Transformer, 34kVA, Primary: 575VAC, Secondary: 460Y/266VAC, 60Hz, 3 Phase, Electrostatic Shield, NEMA Type 3R Ventilated, Vibration Dampening Pads, Exempt From DOE TP1, UL/cUL, 63 Series (Motor Drive Isolation)

Weight:
370.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Purpose-built isolation for variable speed motor drives
Description

The Dongan 63 Series Motor Drive Isolation transformer is specifically designed to meet the demands of SCR-controlled variable speed motor drives, isolating the line from SCR-generated voltage spikes and transient feedback.

Key Features

  • Electrostatic shield between windings to help reduce line transients that can cause SCR misfiring
  • Ruggedly constructed to withstand the high mechanical forces of SCR drive duty cycles
  • NEMA Type 3R ventilated, wall or floor mount enclosure
  • Vibration dampening pads for quiet operation
  • Exempt from US DOE TP1 requirements

Certifications

  • UL and cUL Listed
