63-15-407
Dongan

63-15-407

Alt: 63-15-407

$5,251.00

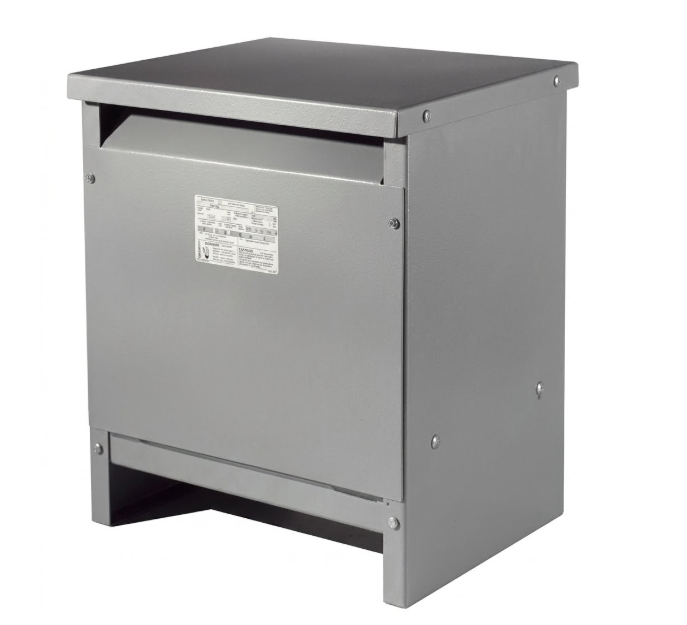

Transformer, 15kVA, Primary: 380VAC, Secondary: 208Y/120VAC, 60Hz, 3 Phase, Electrostatic Shield, Aluminum Windings, UL Class 220C Insulation, NEMA Type 3R Ventilated Floor Mount, DOE 2016 Compliant, UL/cUL, 63/73 Series (Vanguard)

Weight:
230.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
DOE 2016 compliant transformer that lowers energy costs over time
Description

The Dongan Vanguard 63/73 Series three phase transformer is engineered to meet DOE 2016 energy efficiency standards, reducing energy losses versus previous designs while lowering total cost of ownership.

Key Features

  • Electrostatic shield between primary and secondary windings for cleaner output voltage
  • Aluminum windings connect to bus bar style terminations with NEMA standard holes
  • UL Class 220°C insulation system
  • NEMA Type 3R ventilated, floor mount enclosure for indoor/outdoor use
  • Meets DOE 2016 minimum efficiency requirements
  • 120V lighting tap available on select kVA ratings, limited to 5% of nameplate rating

Certifications

  • UL and cUL Listed
