63-0306
Alt: 63-0306
$2,496.88

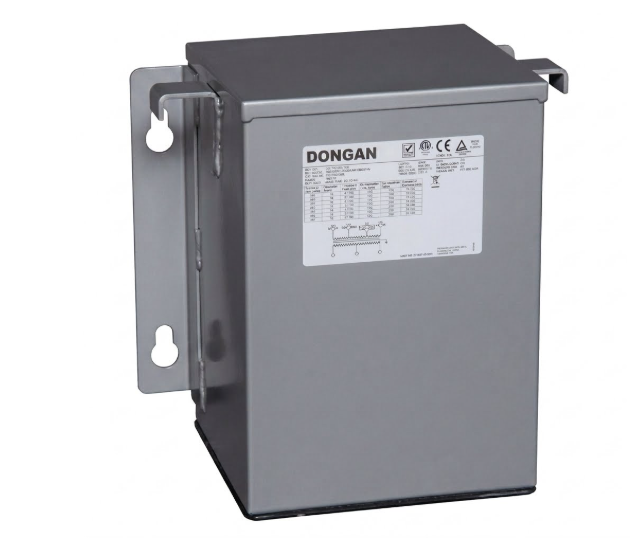

Transformer, 6kVA, Primary: 480VAC, Secondary: 208Y/120VAC, 60Hz, 3 Phase, Electrostatic Shield, NEMA Type 3R Ventilated, Vibration Dampening Pads, Exempt From DOE TP1, UL/cUL, 63 Series (Motor Drive Isolation)
- Weight:
- 98.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Dongan 63 Series Motor Drive Isolation transformer is specifically designed to meet the demands of SCR-controlled variable speed motor drives, isolating the line from SCR-generated voltage spikes and transient feedback.
Key Features
- Electrostatic shield between windings to help reduce line transients that can cause SCR misfiring
- Ruggedly constructed to withstand the high mechanical forces of SCR drive duty cycles
- NEMA Type 3R ventilated, wall or floor mount enclosure
- Vibration dampening pads for quiet operation
- Exempt from US DOE TP1 requirements
Certifications
- UL and cUL Listed
