$353.17
Buck-Boost Transformer, .150kVA, Primary: 240x480VAC, Secondary: 24/48VAC, 50/60Hz, Ventilated NEMA Type 1 Construction, Dual Primary/Dual Secondary Buck-Boost or Isolation Transformer, UL/cUL, Buck-Boost Series
- Weight:
- 7.00 LBS
- Minimum Purchase:
- 1 unit
Description

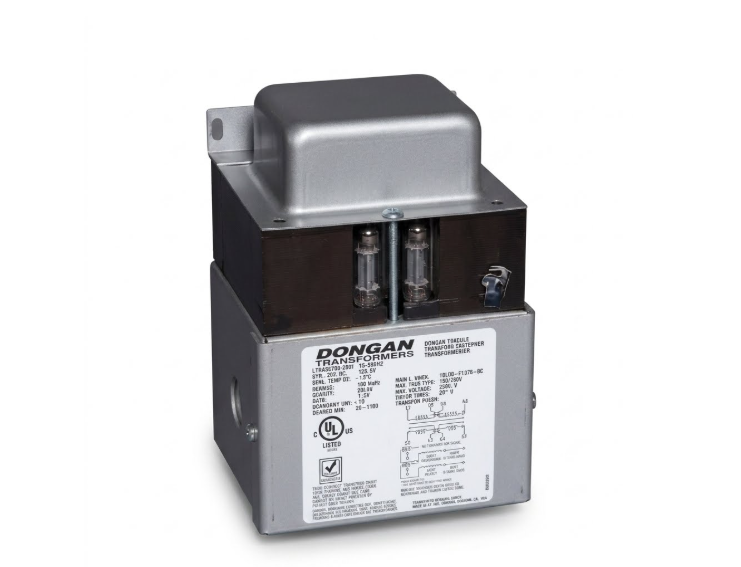

The Dongan Buck-Boost Series transformer is a single phase, four-winding transformer used to correct consistently low or high line voltage, matching supply voltage to the load's required nominal voltage.
Key Features
- Dual primary (120x240V or 240x480V) and dual secondary (12/24V, 16/32V, or 24/48V) windings
- Corrects voltage variation of approximately 5% to 27% between supply and load
- Common uses include boosting 208V lines to 230/240V and 240V to 277V for lighting loads
- Also usable as a low voltage isolation transformer on 12-48V circuits
Certifications
- UL and cUL Listed
Accessories
