Available Now! B100MBT713XK
Available Now! (4 in stock)

B100MBT713XK

Alt: ImperviTRAN Series

$132.75

Transformer, 100VA, 4.17/0.87 Amps, Primary: 208/230/460V | Secondary: 24/115V

Weight:
5.90 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

Have you heard about our rewards program, Pack Perks? Learn all about it here!

Description

Micron is well known throughout the transformer industry and has also added power supplies to their product mix. They have been an industry leader for more than 40 years!

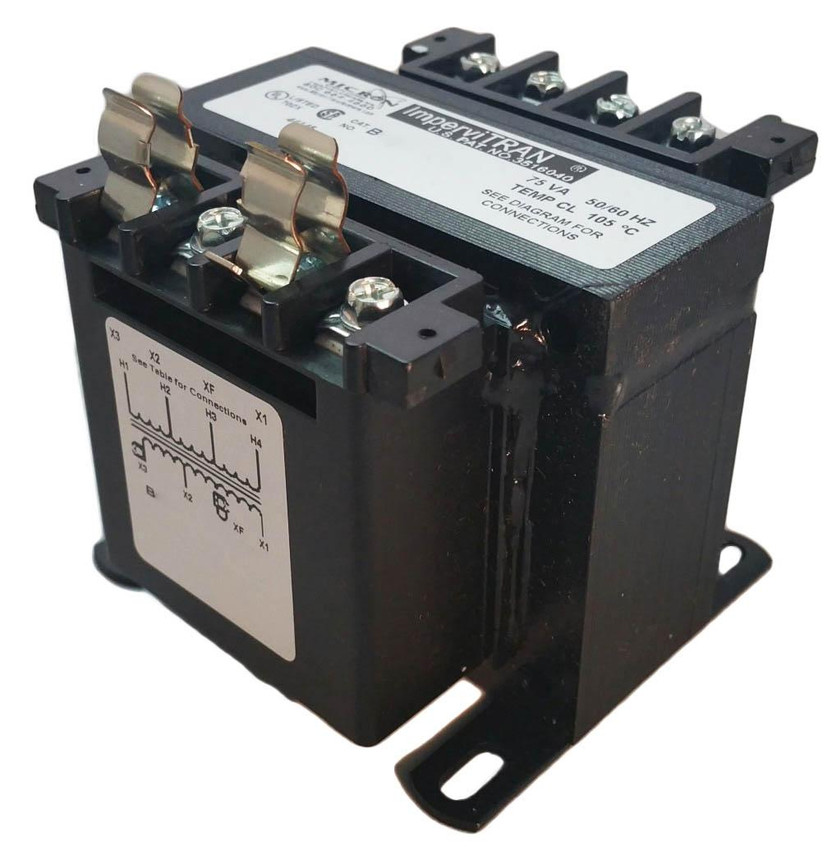

ImperviTRAN® is the standard, reliable industrial control circuit transformer. This is the most accepted transformer in the industry!

  • Epoxy encapsulated coils
  • 20 year warranty!
  • Secondrary fuse cilps where applicable
  • Molded-in terminals and phil-slot screws
  • Optional primary fusing
  • Molded terminal barriers

GlobalTRAN® was created when new compliance standards for transformers were released and is compliant with EN61558-2 (replaced previous standard on 12/31/2003).

  • Carries the CE mark
  • 20 year warranty
  • Epoxy encapsulated coils
  • SafeTouch terminals for additional safety
  • Optional integral primary and/or secondary fusing
  • Molded in terminals and phil-slot screws

DINergy is Micron's family of DIN rail mounted power supplies.

  • 85-264VAC input
  • Compact, high efficiency
  • Available with UL1604 Class 1 Division 2 for hazardous locations
  • 3 year warranty

Marshall Wolf Automation is your authorized Micron distributor!

Features Include:

  • 'K' in suffix means installed secondary fuses clips
  • 'R' in suffix means installed Class 'CC' primary fuse block
  • 2 letter suffix - Temperature Class 105°C
  • 3-letter suffix ending in 'F' - Temperature Class 130°C
  • 3-letter suffix ending in 'H' - Temperature Class 180°C
  • Epoxy encapsulated coils
  • 20-year warranty, double the industry standard
  • Secondary fuse clips where applicable
  • Optional primary fusing
  • Molded terminal barriers
  • 10-32 screw terminals
  • Molded-in terminals
  • Phil-slot screws
  • UL Listed - File #E46323
  • CSA Approved - File#LR27533
  • Marshall Wolf Automation is your authorized Micron distributor
