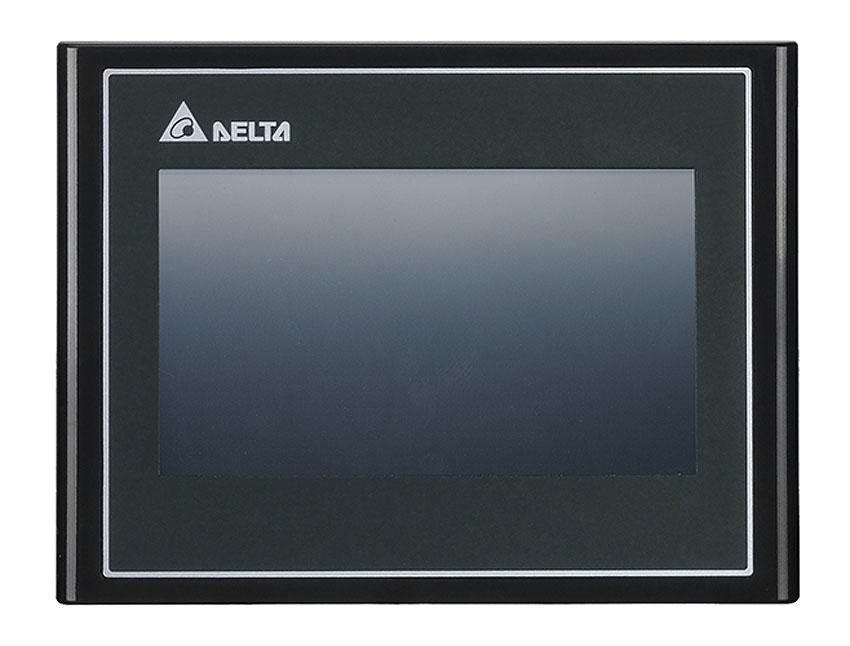

DOP-107EG

The Delta DOP-100 Series includes a basic, standard and advanced HMI for different applications.

• Cortex-A8/dual core high-speed processor
• 65,536 color LCD screen
• HMI programming software DOPSoft 4.0
• Built-in Lua editor for easy programming, alarm/history log/user authority

DOP-xxxXX

B: 1 COM port

C: 2 COM ports

E: 2 COM ports + 1 Ethernet port

W: More than 1 COM port + 1 Ethernet port + Narrow frame design + multi-language

M: 2 COM ports + 2 Ethernet ports + Narrow frame design + multi-language + Multimedia

Features Include:

• Dimensions: 7”(800 x 600) 65,536 Colors TFT
• Touch Panel: Four-wire resistor, over 10,000,000 pressing times
• Buzzer: Multi-Tone Frequency (2K ~ 4K Hz) / 80dB
• Operation Voltage: DC +24V (-15% ~ +15%)(please equip isolated-type power supplies) Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)
• Cortex-A8 800MHz CPU
• 256 MB RAM
• 256 MB ROM
• Built-in Ethernet
• 2 sets of COM ports / 1 extension COM port
• USB Host
• USB Client
• Supports SD card
• CE / UL certified
• Operation Temperature: 0℃ ~ 50℃
• Storage Temperature: -20℃ ~ 60℃
• Pressing times: >10,000K times
