$1,698.14
HG3G-VAXT22MF-W
Alt: Enhanced Version of HG3G-AJT22MF-W, HG3G-AJT22TF-W
$1,608.57

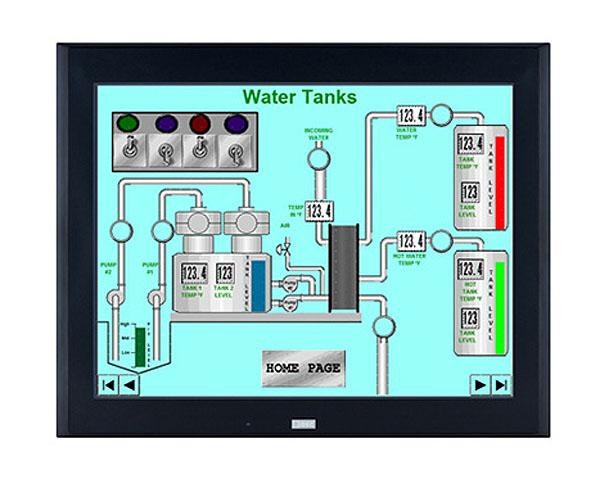

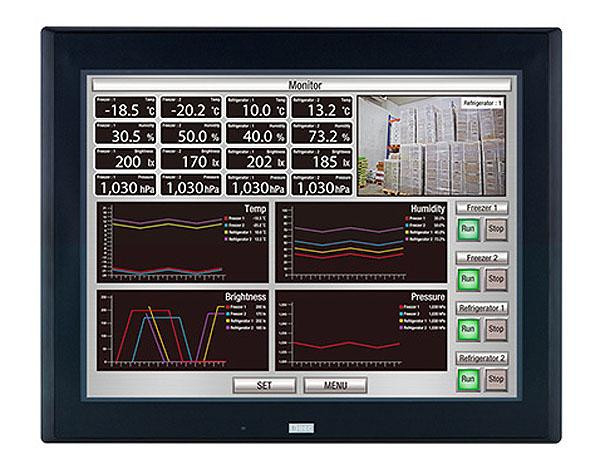

Touchscreen 10.4" 1024x768, 700cd/m², 4 I/O, White 24VDC, 65K, IP66/67F
- Weight:
- 4.39 LBS
- Minimum Purchase:
- 1 unit
Description
IDEC's high performance HMI's offer a higher display resolution, wider operating temperatures, more memory space and an extra video input. The HG*V-V series replaces the HG2G/HG3G/HG4G series (they will be discontinued March 2020).
Featuring up to 800 cd/m brightness, 1024 x 768 pixels high resolution displays, and over 100,000 hours of backlight life, they are the brightest, longest-lasting displays on the market.
A wide operating temperature range of -20°C to +60°C as well as IP66F, IP67F, Type 4X, 12, 13, and Class I Div 2 approval ratings, assures reliable operation in the toughest environments.
These touchscreens are built for endurance and are backed by an industry leading three-year warranty
Marshall Wolf Automation is your authorized IDEC distributor.
Features include:
- High Resolution Display: 1024 x 768 pixels (8.4", 10.4", 12.1", 15"), 640 x 480 pixels (5.7")
- Backlight light of 100,000 hours with up to 800 cd/m2 brightness
- Wide range of Operating Temperature: -20˚C to +60˚C
- Multiple Protocols - up to 4 protocols simultaneously
- Remote Access, Monitor and Control Function
- FTP, Email, Mobile App and Custom Web Page
- Audio and Video Interface (8.4", 10.4", 12.1", 15")
- Supports Analog and Discrete I/O Expansion Modules
- IP66F/67F, Type 4X, 12 and 13, Class I Div 2
- 3 Year Warranty
Features Include:
- LCD Type: TFT
- Operating Voltage: 24VDC
- Color Depth: 65,536 colors
- Mounting: Portrait or landscape
- Display Resolution: 1024 x 768 pixels
- Brightness: 700 cd/m2
- Wide Operating temperature range: -20°C to +60°C
- USB Port: 1 Type A & 1 mini-B
- Backlight lifespan: 100,000 hours min
- FTP, Email, Web Server and BACnet Protocol
- WindEDIT Mobile App for iOS and Android
- Multiple protocols - up to 4 protocols simultaneously
- Multimedia Function - Audio Out and 2 Video In
- Support Analog and Digital IO Expansion modules
- IP66F/67F, UL Type 4X, 12, and 13
- Class I Division 2
