Kuebler
KUB-1.310.111.014.023.076
Pulse Counter, 48VDC/10Hz, 4-Digit, Screw Terminal, Mounting Flange, Mounting Holes, Manual Reset
$169.85

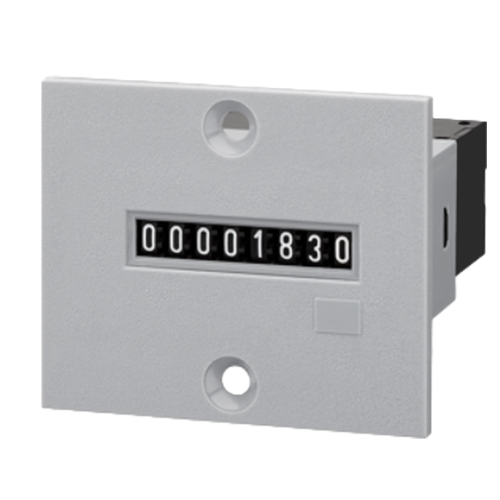

KUB-1.260.101.033.076
Alt: 1.260.101.033.076, Kubler
$123.83
Pulse Counter, 24VDC/25Hz, 8-Digit, Round Pins Ø1.6mm, Front Panel Screw Mount, Without Reset
- Weight:
- 0.20 LBS
- Minimum Purchase:
- 1 unit
Description
The Kübler B16 / B18 series is a robust electromechanical pulse-counter totalizer rated for 200 million pulses of service life, built for general quantity counting, piece counting, and event counting in harsh industrial environments. It is available in 6-digit (B16) or 8-digit (B18) display versions, with or without manual reset, in front-bezel, big-panel, or clip-mount styles.
Key Features
- 200 million pulse operating life
- 6-digit (B16) or 8-digit (B18) display, with or without manual reset
- Pluggable design, combinable with BVa and HVa preset counters and HB timers
- Upgradable with front covers for protection against dust, dirt, and humidity
- IP41-rated (without reset) or IP40-rated (with reset) at the front of the panel
- High-temperature-rated variants available on request
Certifications
- CE - EMC Directive 2014/30/EU
- CE - Low Voltage Directive 2014/35/EU
- CE - RoHS Directive 2011/65/EU
