Carlo Gavazzi

DAC51CM24

$122.40

Timer, Star-Delta, Mini, 0.1-600s & 50-130ms, 24-240VAC/DC, DIN Rail Mount

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DAC51CM24
DAC51CM24
DAC51CM24
DAC51CM24
Description
Timer, Star-Delta, Mini, 0.1-600s & 50-130ms, 24-240VAC/DC, DIN-Rail Mount

Features Include:

  • Time range (Star): 0.1 to 600 s
  • Time range (Star to Delta): 50 to 130 ms
  • Knob selection of star time range
  • Knob adjustable time setting
  • Automatic start
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 22.5 mm Euronorm housing or 36 mm Plug-in module housing
  • LED indication for relay status and power supply ON
  • Setting Accuracy: ≤5%
  • Repeatability: ≤0.2%
  • Output: SPDT relay with neutral center position
  • Output Rated Insulation Voltage: 250 VAC (RMS)
  • Operating Frequency: < 7200 operations/h
  • Voltage Interruption: ≤ 10 ms

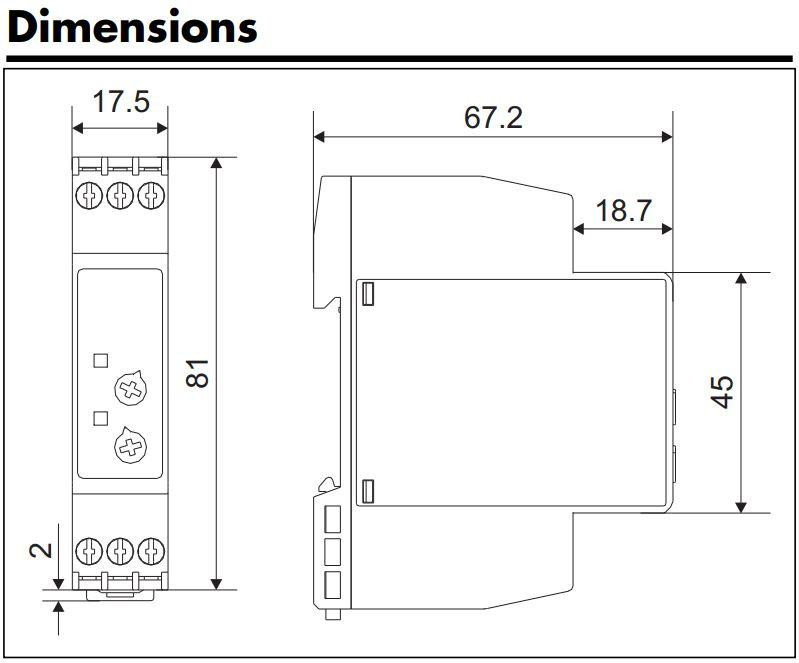

  • Dimensions: 17.5 x 81 x 67.2 mm

Rated Operational Power:

  • AC Supply:  5VA
  • DC Supply: 1.5 W

Rated Operational Voltage through Terminals: A1 and A2 (DAC01)

  • 24 to 240 VAC/DC +10% -15%, 45 to 65 Hz

Time Variation:

  • Within rated power supply: ≤ 0.05%
  • Within ambient temperature: ≤ 0.2%

Start to delta delay:

  • Neutral Centre Position: 50 to 130 ms between star and delta position
