Alt: AT8PSN-100/120V


Timer, Power OFF Delay, 48x48mm, DIN, Seconds, Analog, 8-Pin Plug, 100-120VAC, 50/60Hz

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please look at the accessories tab below, this timer does require a socket.

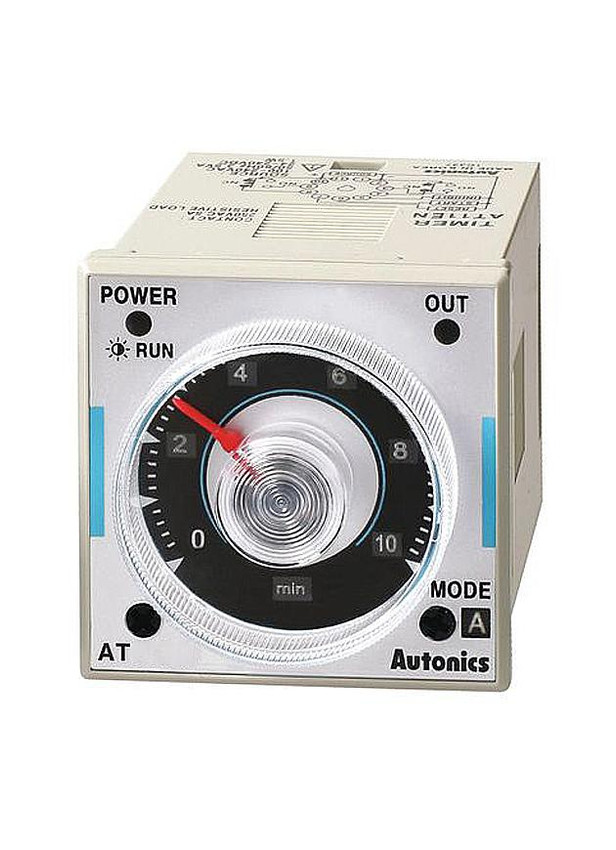

Our Autonics AT series are 1/16th DIN multifunction timers.

  • AT8 are power ON start
  • AT11 are signal ON start
  • EN is instantaneous SPDT and time limit SPDT
  • DN is time limit DPDT (2c)
  • Just 'N' is time limit DPDT (2c) or instantaneous SPDT selectable

AT8 timers will require an 8-pin socket (PG08/PS08) and the AT11 timers require an 11-pin socket (PS11/PG11).

Features Include:

  • Time setting range (AT8PSN : 0.05 to 10sec, AT8PMN : 0.05 to 10min.)
  • Simple time setup and direct read of time range
  • Application : Protect circuit when momentary power failure and start it again
