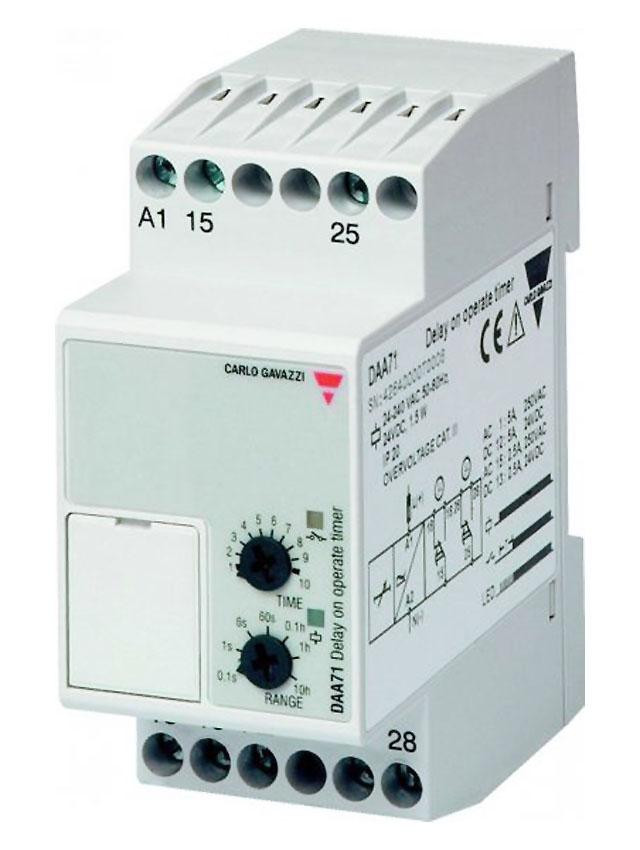

Product image is representative only, please verify specifications.

Carlo Gavazzi

DAA71DW24

Alt: Manufacturer Minimum Order 5 Pieces

$129.60

Timer, Delay on, 0.1s-100h, DPDT, 12-240VAC/DC, DIN Rail Mount, Manufacturer Minimum Order 5 Pieces, Price per Piece

Minimum Purchase:
5 units
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DAA71DW24
DAA71DW24
DAA71DW24
DAA71DW24
Description
Timer, Delay on, 0.1s-100h, DPDT, 12-240VAC/DC, DIN-Rail Mount

Features Include:

  • Time range 0.1 s to 100 h
  • Knob selection of time range
  • Knob adjustable time setting
  • Automatic start
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 17.5 mm (DAA51C) or 35.5 mm (DAA71D) DIN-rail housing (DIN 43880)
  • Combined AC and DC power supply
  • LED indication for relay status and power supply ON
  • Repeatability: ≤ 0.2%
  • Output: SPDT or DPDT relays
  • Rated Insulation Voltage: 250 VAC (rms)
  • Operating Frequency: < 7200 operations/h
  • Operating Temperature: -20° to +60°C, R.H. < 95%
  • Dimensions: 35.5 x 81 x 67.2 mm

Rated Operation Voltage through Terminals:

  • A1, A2, M24: 24 to 240 VAC +10% -15%, 45 to 65 Hz
  • W24:12 to 240 VDC +10% -15% and 12 to 240 VAC +10% -15%, 45 to 65 Hz

Rated Operational Power:

  • AC Supply: 5.5 VA
  • DC Supply: 2W

Time Variation:

  • Within rated power supply: ≤ 0.05%/V
  • Within ambient temperature: ≤ 0.2%/°C

Indication for:

  • Power supply ON: LED, green
  • Output relays ON: LED, yellow (flashing when timing)
