Sprecher and Schuh
CA8-12C-10-24DD
Mini Contactor, Non-Reversing, 3 Pole,1 NO Auxiliary Contact, 24VDC
$170.89
CA8-09-10-120
$89.52
Contactor, 3-Pole, 120VAC, Coil, 1NO Aux
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

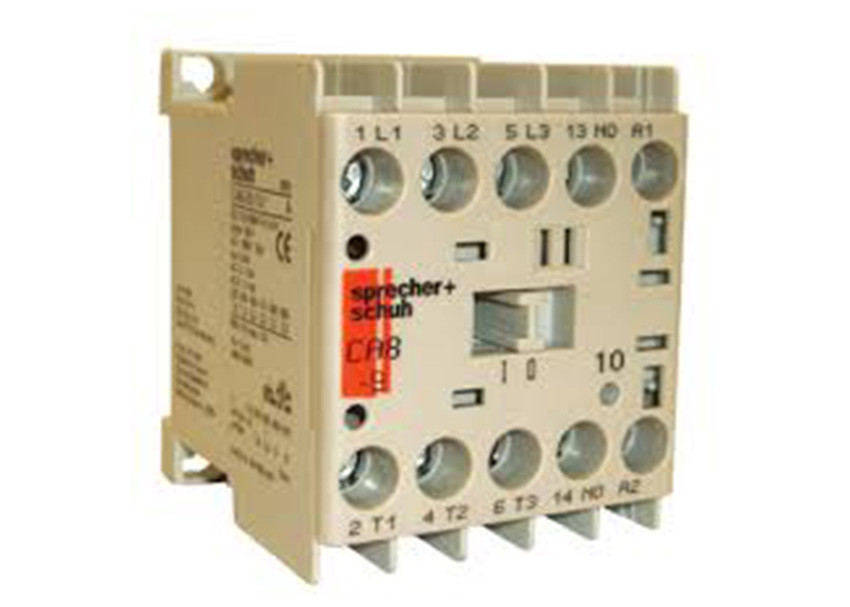

The Sprecher + Schuh CA8 miniature contactor is a compact three-pole contactor for switching small motors and control loads where panel space is limited. It is offered with AC or DC coils, and its low coil consumption suits direct control from PLC outputs.
Key Features
- Three-pole, open-type miniature contactor with one built-in auxiliary contact
- AC and DC coil versions; DC coils available with an integrated diode surge suppressor
- Mechanically linked main and auxiliary contacts; mirror contact design per IEC 60947-4-1
- Bifurcated AgNi auxiliary contacts for low-level signals (2mA/15V)
- Pluggable surge suppressor modules snap on with no wiring
- Top-mount mechanical interlock available for AC or DC reversing
- Rated 690V; UL/CSA horsepower ratings for single- and three-phase motors
- Coils and contacts are not replaceable
- Pairs with direct-mount CT8 thermal overload relays
Certifications
- RoHS compliant
Accessories
Available Now!
Available Now!
Available Now!
