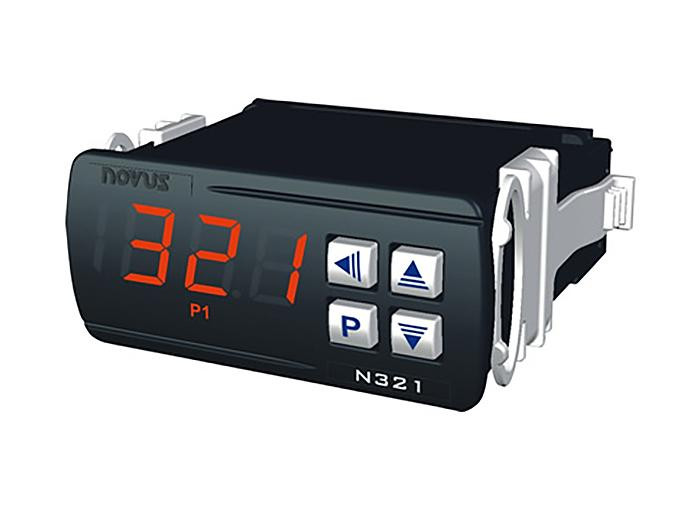

Our Novus N321 temperature controllers are available in four different sensor inputs; Pt100, Pt1000, thermocouple J or thermister (please see spec sheet or individual part numbers for sensor input).
These temperature controllers are used to measure, indicator and control temperature in a wide range of applications!
The front is IP65 and the output is relay, SPDT.
Features Include:
Sensor input: Pt100 (-50 to 300 °C), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C)
IP65 enclosure frontal protection
Output: Relay SPDT: 1 HP 250 VAC / 1/3 HP 125 VAC (16 A Resistive)
Resolution: 0,1 °C from -19.9 to 199.9 °C
Accuracy: ± 0,5 °C / °F ±1 digit (Pt100 / Thermistor) and ±2 °C for Thermocouple
Adjustable hysteresis
Sampling: 1.5 per second
Working temperature: 0 to 50 °C
Power supply: 100-240 VAC (internal) or 12-24 VAC/DC
Digital communication via RS485 with Modbus RTU protocol (optional)
