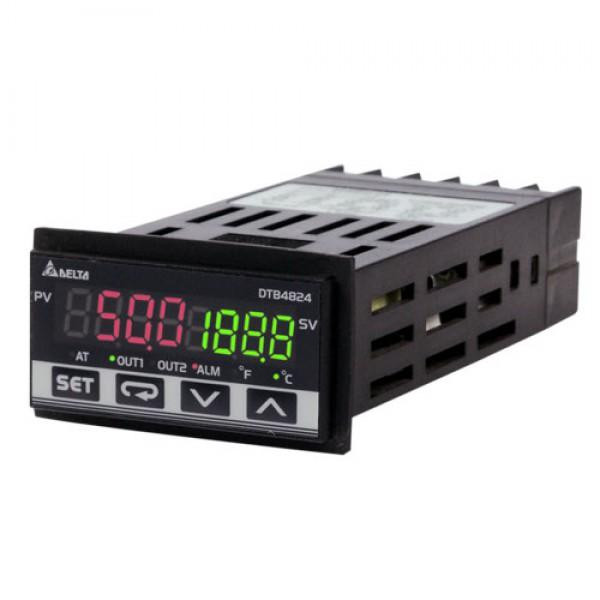

Temperature Controller, 1/32 DIN, Universal Input

More Views

  • Temperature Controller, 1/32 DIN, Universal Input

Delta Industrial Automation - DTB4824VR

Quick Overview

Temperature Controller, 1/32 DIN, Universal Input, IP65, No Event/CT Function, Volt/Relay Output
$98.40

Standard Stock

- +
Temperature Controller, 1/32 DIN, Universal Input, IP65, No Event/CT Function, Volt/Relay Output
Additional Information
Part Number DTB4824VR
Product Series DTB
Availability Please Contact Us
Product Series DTB Series
Digital or Analog Digital
Input Universal (t/c, RTD, mA)
Output Relay Output
Size 1/32 DIN 48x24mm
Ratings IP65
Weight - lbs. 0.7500
Base Unit of Measure Each
Specification Tab
  • 2 groups of outputs to auto-tuning 2 groups of PID parameters
  • Able to connect to various thermocouples (B, E, J, K, L, N, R, S, T, U, TXK), platinum RTD (PT100, JPT100), analog current (0 ~ 20mA, 4 ~ 20mA) and linear voltage (0 ~ 5V, 0 ~ 10V)
  • Maximum 3 groups of alarm switches are available, with 18 alarm modes each
  • Celsius or Fahrenheit temperature display
  • 2 key lock functions (1. lock all keys; 2. lock only function keys, up/down keys are still workable)
  • Panel sizes: 4824, 4848, 4896, 9696
  • Built-in RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400)
  • Sampling time of thermocouple/platinum RTD: 0.4 second/time; sampling time of analog input: 0.15 second/time
  • Programmable logic controller is able to set up 64 sets of temperature and control time.
  • Optional CT (wire breaking detection) function, an alarm output
  • Optional Event function, using PLC or switches to switch between 2 different set temperatures.
  • Optional Valve function, adjusting the open/close of the valve by the output value.
Resources

Need More Information?


  • 2 groups of outputs to auto-tuning 2 groups of PID parameters

  • Able to connect to various thermocouples (B, E, J, K, L, N, R, S, T, U, TXK), platinum RTD (PT100, JPT100), analog current (0 ~ 20mA, 4 ~ 20mA) and linear voltage (0 ~ 5V, 0 ~ 10V)

  • Maximum 3 groups of alarm switches are available, with 18 alarm modes each

  • Celsius or Fahrenheit temperature display

  • 2 key lock functions (1. lock all keys; 2. lock only function keys, up/down keys are still workable)

  • Panel sizes: 4824, 4848, 4896, 9696

  • Built-in RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400)

  • Sampling time of thermocouple/platinum RTD: 0.4 second/time; sampling time of analog input: 0.15 second/time

  • Programmable logic controller is able to set up 64 sets of temperature and control time.

  • Optional CT (wire breaking detection) function, an alarm output

  • Optional Event function, using PLC or switches to switch between 2 different set temperatures.

  • Optional Valve function, adjusting the open/close of the valve by the output value.
