8803006706

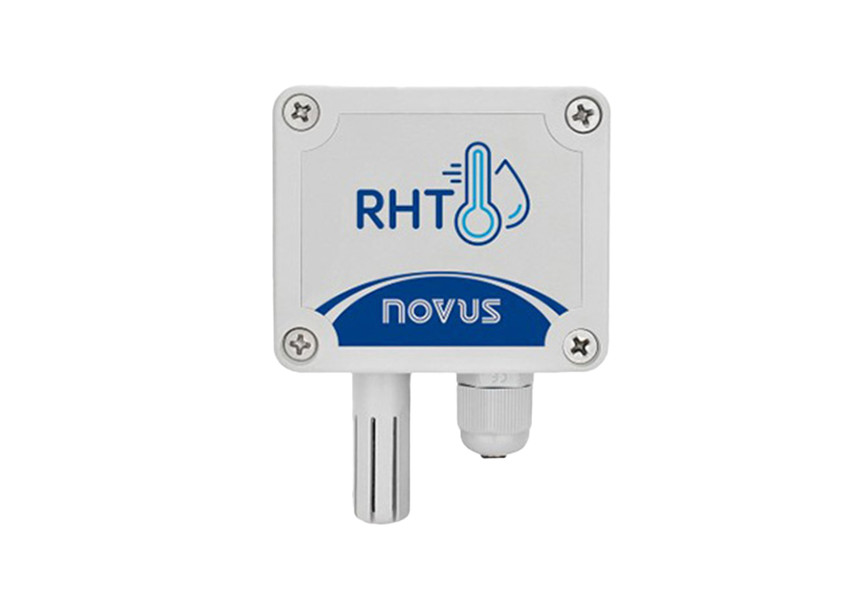

Temp/Humidity Transmitter, Wall Mount, 4-20mA Output

Features Include:

• Internal protection against reversed voltage wire polarity
• Power: from 12 Vdc to 30 Vdc (model 4-20 mA) or 18 to 30 Vdc (model 0-10 V)
• Cable input: PG7 cable gland

Output:

• Two-wire loop powered  4-20 mA or 20-4 mA
• Voltage output: 0-10 Vdc (optional)

Isolation between outputs:

• Isolated 4-20 mA outputs
• Non-isolated  0-10 Vdc outputs

Output load (RL):

• Model 4-20 mA: RL (max. in Ohms) = (Vdc – 12) / 0.02 - where: Vdc=power voltage in Volts
• Model 0-10Vdc: 10 Kohms Minimum

Operational Limits:

• Electronic Module: -10 to +65°C, 0 to 95%RH
