D7P-SM22
Sprecher and Schuh

D7P-SM22

$17.10

Selector Switch Operator, Ø22mm, 2 Position, Maintained, 60° Switching Angle, Black Standard Knob, Plastic Operator and Bezel, Operator Only, Latch and Contact Blocks Sold Separately, D7 Series, Type 4/4X/13, IP66

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
2-position maintained 22mm selector operator, D7 series
Description

The Sprecher + Schuh D7 heavy duty/oil tight pilot device series provides 22mm pushbuttons, illuminated pushbuttons, E-Stop operators, and selector switches for industrial control panels and machine operator stations. Devices are available as complete kits or as operator-only components, so panel builders can order exactly the operator, mounting latch, and contact blocks an application needs. Plastic and metal operator styles use the same tool-less mounting latches and snap-on D7 contact blocks.

Key Features

  • 22mm operators for standard 22.5mm panel mounting holes
  • Plastic operators with plastic bezel rated UL Type 4/4X/13, IP66
  • Metal operators with metal bezel rated UL Type 4/13, IP66 (metal jog and multi-function operators are rated UL Type 4, IP66)
  • Tool-less plastic or metal mounting latch for snap-on contact blocks and power modules
  • NC contact blocks provide positive opening per EN 60947-5-1
  • Extended pushbutton and mushroom-head operators meet NFPA 79, 10.2.1 for stop-function actuators
  • Twist-to-release E-Stop operators are EN ISO 13850 compliant when used with NC, NCLB, or Guardian contact blocks
  • Illuminated operators use integral LED modules (24VAC/DC, 120VAC, or 240VAC) or incandescent modules
  • Selector switches offered in maintained and spring-return versions with a 60° switching angle, plus selector/jog and two-button multi-function operators
  • Legend plates and inscription rings are sold separately

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Sprecher and Schuh

D7P-SM22PX10

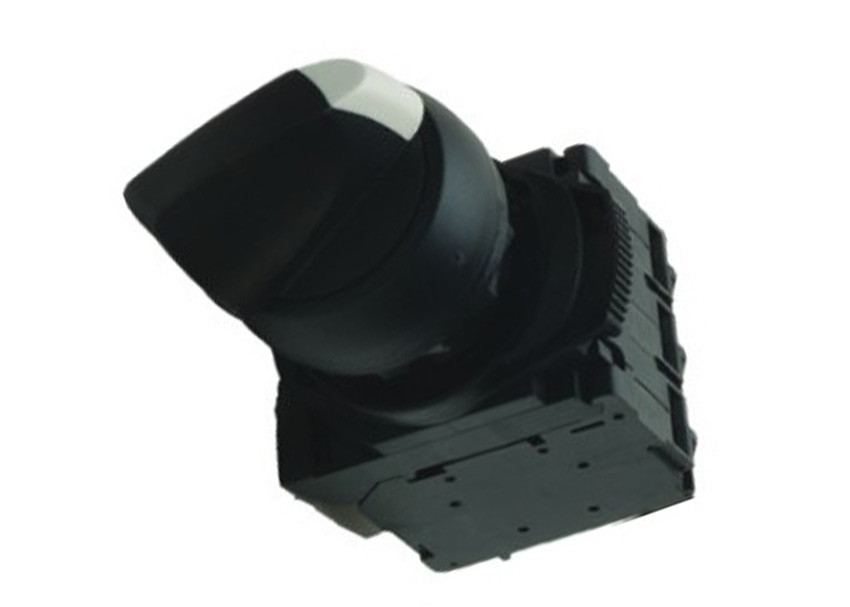

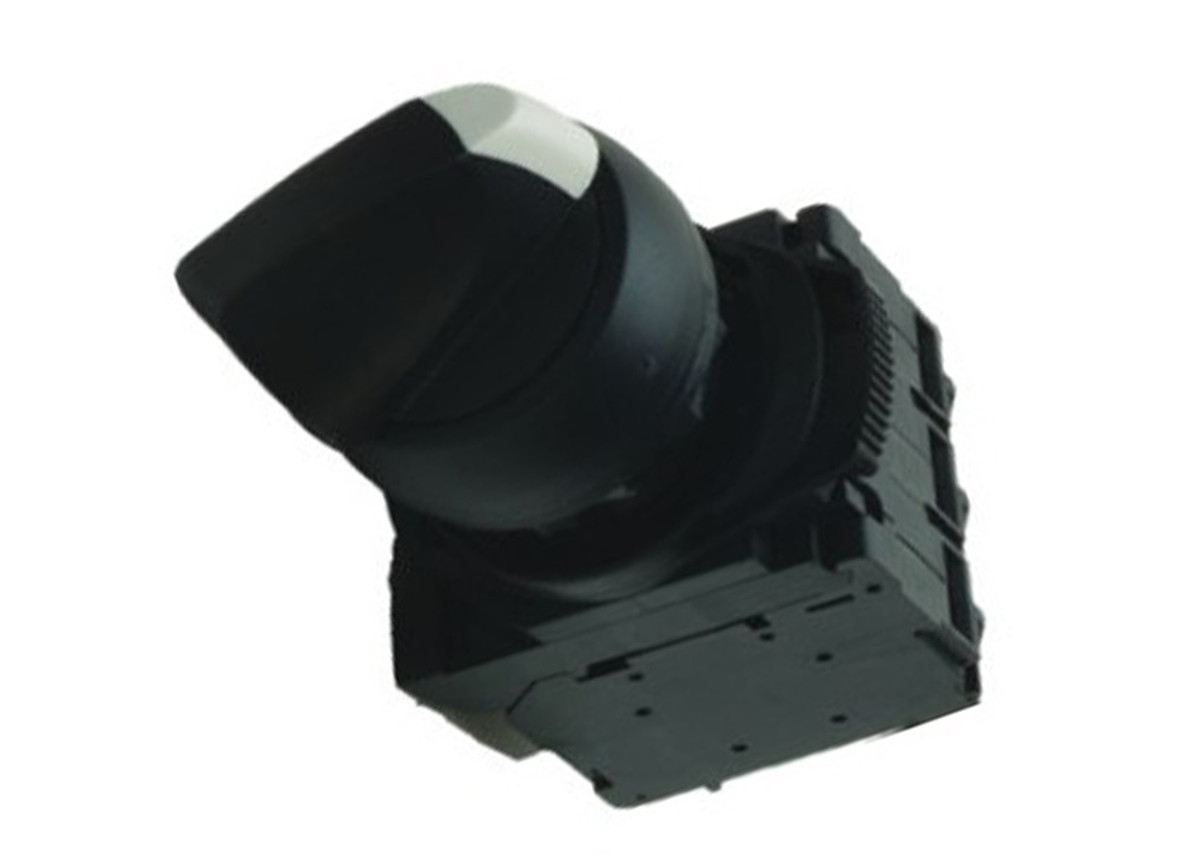

Selector Switch, 22mm, Non-Illuminated, Plastic Operator with Plastic Bezel, Plastic Latch, 2-Position Maintained, 60 Degree Switching Angle, Black Knob with White Insert, 1NO, Standard, UL Type 4/4X/13, IP66

$34.91

Sprecher and Schuh

D7P-E402PX01

Pushbutton, Ø22mm, Extended, Momentary, Non-Illuminated, Red, STOP Molded Cap, 1NC, Plastic Operator and Bezel, Plastic Latch, NFPA 79 Stop Operator, D7 Series, Type 4/4X/13, IP66

$33.28

Sprecher and Schuh

D7P-F9

Pushbutton Operator, Ø22mm, Flush, Momentary, Non-Illuminated, No Cap, Plastic Operator and Bezel, Operator Only, Cap, Latch and Contact Blocks Sold Separately, D7 Series, Type 4/4X/13, IP66

$8.49

Sprecher and Schuh

D7P-MT44

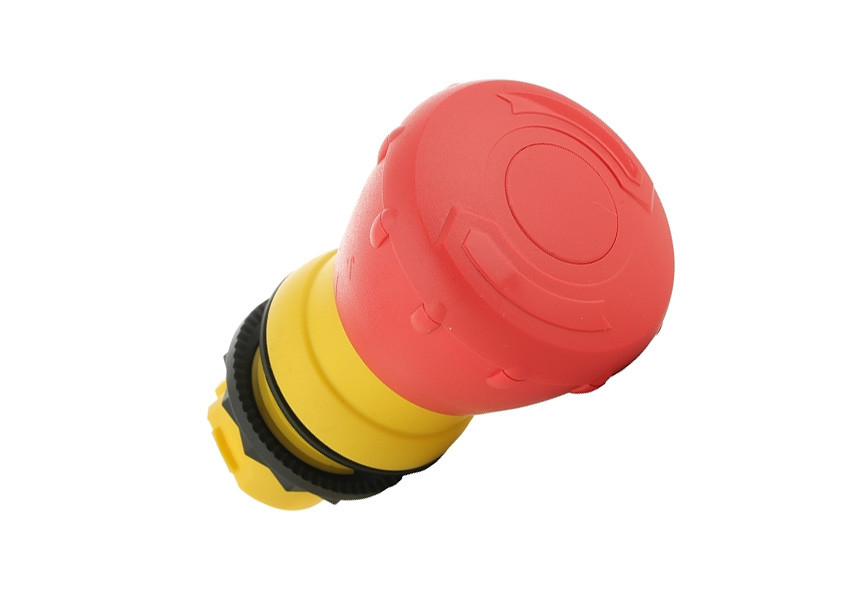

E-Stop Operator, Ø22mm, 40mm Red Mushroom, Twist-to-Release, Trigger Action, Plastic Operator and Bezel, Operator Only, Latch and Contact Blocks Sold Separately, D7 Series, Type 4/4X/13, IP66

$41.57

Sprecher and Schuh

D7P-F402PX01

Pushbutton, 22mm, Non-Illuminated, Momentary, Flush, Plastic Operator with Plastic Bezel, Plastic Latch, 1NC, Red with 'STOP' Inscription, Standard, UL Type 4/4X/13, IP66

$30.43
