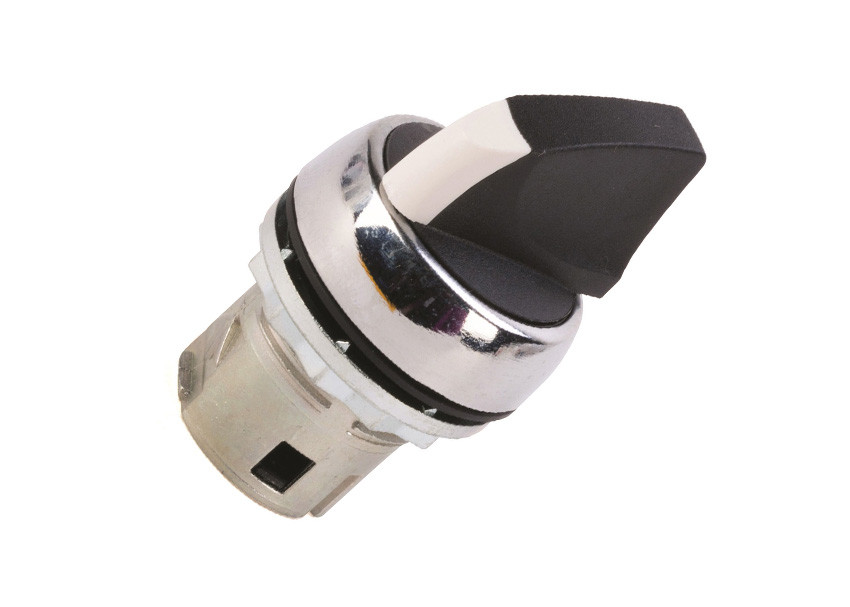

D7M-SM32MX20

Sprecher + Schuh’s D7 Series Pilot Devices offer high-performance, industrial-grade control solutions designed for rugged environments. These modular devices are ideal for machine control panels, industrial automation systems, and operator interface stations. Built for durability and flexibility, the D7 Series ensures reliable operation in demanding conditions, while offering a streamlined installation process.

Key Features

• Modular Design – Flexible assembly with interchangeable components
• High Durability – Built to withstand harsh industrial environments (IP66 rated)
• Global Certifications – UL, CSA, CE approved for worldwide application
• Easy Installation – Snap-on contact blocks and mounting adapters reduce assembly time
• Multiple Operator Styles – Illuminated and non-illuminated options, emergency stops, selector switches, pushbuttons, and more
• LED Illumination Available – Long-life, energy-efficient lighting options
• Color-Coded Options – Standardized actuator colors for intuitive operator control
• Compact Form Factor – Ideal for control panels with limited space

D7 Series Overview

The D7 line is organized into several sub-series, each offering specific functionality and design to meet various industrial needs.

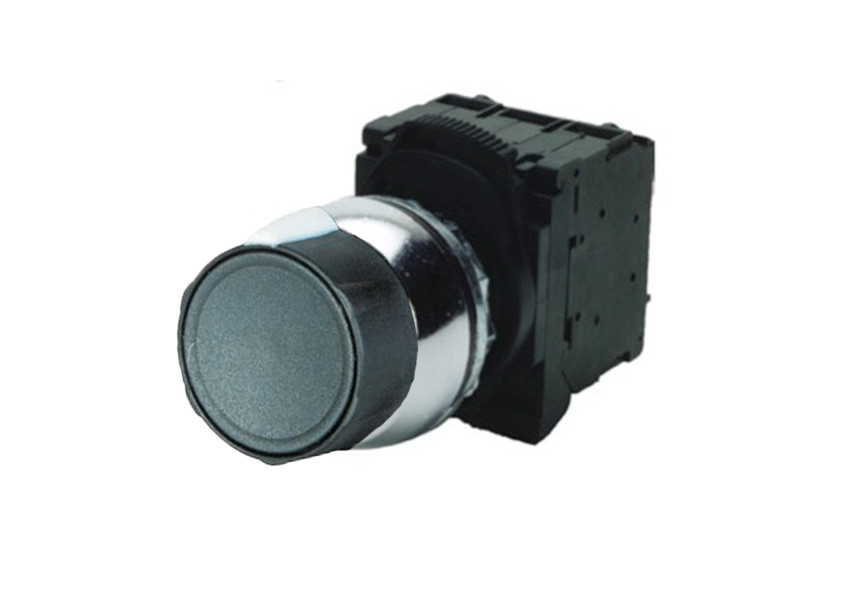

D7-P Pushbuttons

• Standard momentary and maintained pushbuttons
• Available in flush or extended designs
• Illuminated versions with full-voltage or transformer-type lighting

D7-S Selector Switches

• Rotary switches with 2 or 3 positions
• Maintained or spring-return options
• Available in key-operated versions for added security

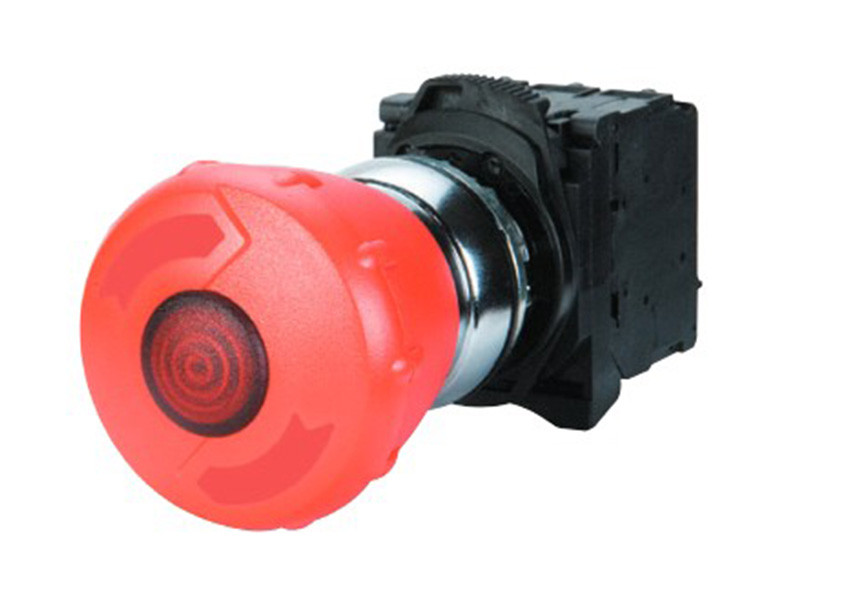

D7-E Emergency Stop Devices

• Red mushroom-head pushbuttons designed for quick machine shutdown
• Compliant with EN ISO 13850 standards
• Twist-to-release or pull-to-release versions available

D7-I Indicator Lights

• Bright LED or incandescent indicators for status signaling
• Wide range of lens colors
• Full-voltage and transformer types offered

D7-J Joystick Operators

• Multi-directional control with up to 5 positions
• Ideal for cranes, hoists, and machine tools

D7-K Key Selector Switches

• Added security for access control
• Maintained or spring-return functions
• Multiple key removal positions available

These versatile devices are compatible with Sprecher + Schuh’s enclosures and accessories, making them the ideal choice for tailored operator control stations. Whether you’re building new control panels or upgrading existing systems, the D7 Series provides unmatched reliability and user-friendly installation.
