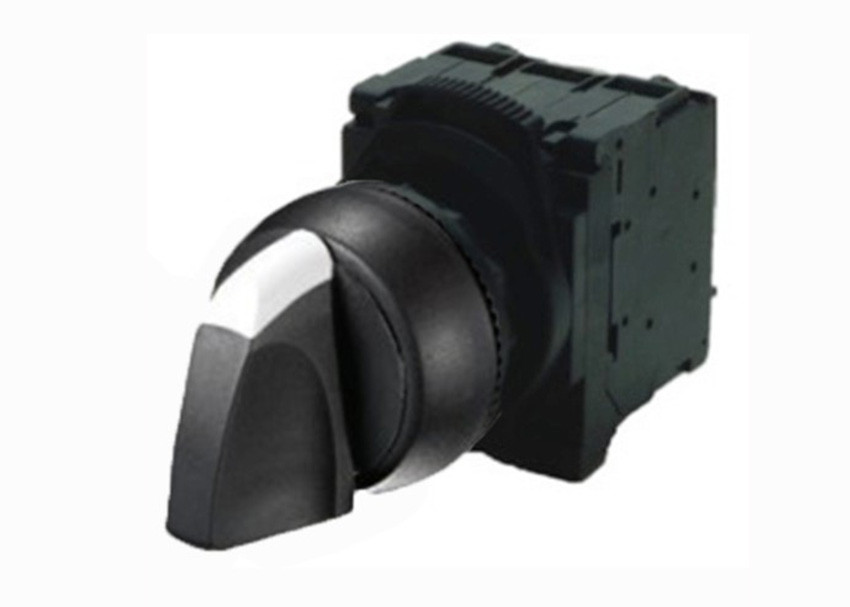

Selector Switch, Ø22mm, 3 Position, Spring Return from Left and Right, 60° Switching Angle, Black Knob, 2NO, Plastic Operator and Bezel, D7D Monolithic, Type 4/4X/13, IP66
The Sprecher + Schuh D7D monolithic pilot device series delivers 22mm pushbuttons, selector switches, indicating lights, and E-Stops as complete, ready-to-install assemblies. Each device ships with its operator and contacts or light module already combined, which simplifies ordering and speeds up panel assembly. The plastic operators are sealed to UL Type 4/4X/13 and IP66 for wet and dusty environments, making the series a practical choice for machine control panels and operator stations.
Key Features
Complete assemblies with plastic operator and plastic bezel, rated UL Type 4/4X/13, IP66

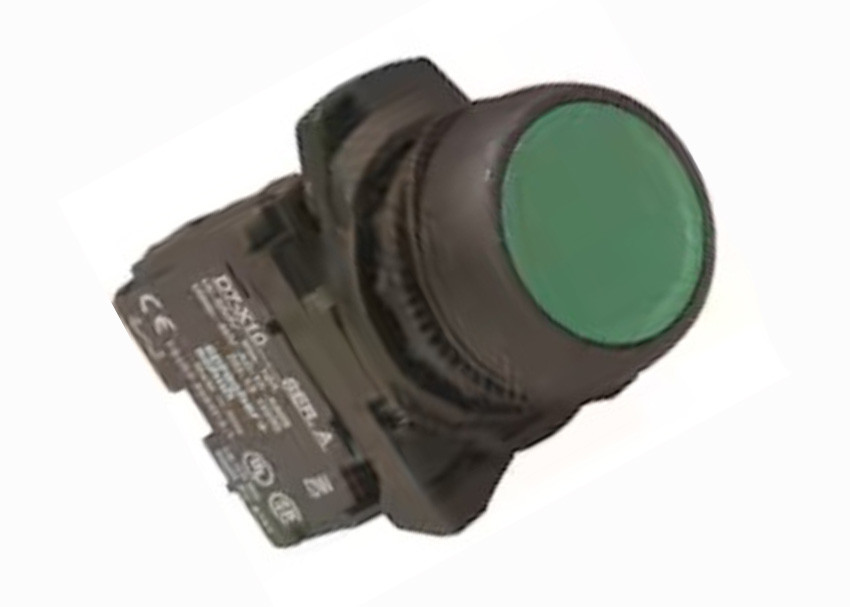

Pushbuttons available with flush or extended caps, with two-color molded and laser-engraved cap options
Selector switches use a positive detent to help prevent hang-up between positions and resist state changes from vibration or a slight bump
Indicating lights feature an optically enhanced lens in amber, green, red, yellow, blue, or clear
Indicating lights offered with a factory-installed, front-replaceable incandescent bulb or an integrated LED rated for 100,000 hours
LED indicating lights offer leakage current protection up to 3mA
E-Stops combine push-pull and twist-to-release operation with non-removable contacts and a trigger-action anti-tease feature
E-Stops meet EN ISO 13850 and EN 60947-5-5
NC contacts provide positive opening per EN 60947-5-1
Standard screw terminals; legend plates sold separately
E-Stop, Ø22mm, 40mm Red Mushroom, Push-Pull/Twist-to-Release, Non-Illuminated, 1NO/1NC, Non-Removable Contacts, D7D Monolithic, EN ISO 13850, Type 4/4X/13, IP66
E-Stop, Ø22mm, 40mm Red Mushroom, Push-Pull/Twist-to-Release, Non-Illuminated, 2NC, Non-Removable Contacts, D7D Monolithic, EN ISO 13850, Type 4/4X/13, IP66
