IDEC

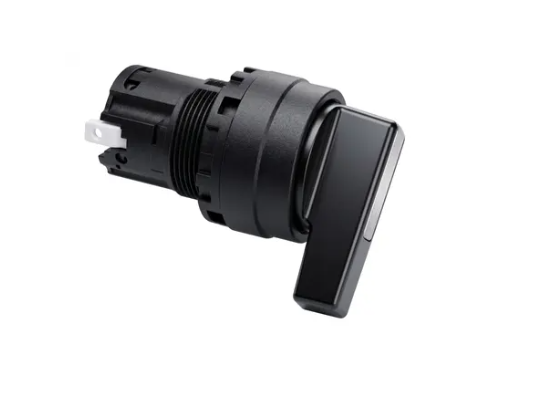

HW4S-32L-PS-U
Sub-Assembled Operator, 22mm, Selector Switch, Lever Handle, Metal Bezel, 3 Positions, Return from Left
$9.96
Ships from manufacturer in ~54 days (as of 10/4/2026)
HW1S-32L-PS-U
Alt: HW Series, Updated Design, This Item Replaced HW1S-32L
$9.45
Sub-Assembled Operator, 22mm, Selector Switch, Lever Handle, Plastic Bezel, 3 Positions, Return from Left
- Weight:
- 0.03 LBS
- Minimum Purchase:
- 1 unit
Description
The IDEC HW Series selector switch sub-assembled operator is used to build a 22mm HW Series selector switch for choosing machine modes, functions, or control sources. Two- and three-position versions are available with knob or lever handles, maintained or spring return action, and plastic or metal bezels depending on model. The operator is part of IDEC's updated HW Series design and pairs with the new HW-CN connecting units.
Key Features
- Fits 22mm panel mounting holes
- 2- or 3-position operation, depending on model
- Maintained, spring return from right, spring return from left, or spring return from both sides, depending on model
- Knob or lever handle, depending on model
- Plastic or metal bezel options, depending on model
- Universal operator design works with both screw terminal and push-in connecting units, so the terminal style can be changed by replacing only the rear connecting unit
- Use with updated HW-CN connecting units; updated operators are not compatible with previous-generation connecting units
- HW Series switches are rated UL Type 4X and IP65
- Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
HW1F-32LS-PS-U
Sub-Assembled Operator, 22mm, Illuminated Selector Switch, 3 Positions, Return from Left, Lever Operator, Blue
$17.95
IDEC
HW1S-3L-PS-U
Sub-Assembled Operator, 22mm, Selector Switch, Lever Handle, Plastic Bezel, 3 Positions, Maintained
$7.23
IDEC
HW1S-33T-PS-U
Sub-Assembled Operator, 22mm, Selector Switch, Knob Handle, Plastic Bezel, 3 Positions, Return from Both Sides
$9.45
IDEC
HW1S-32T-PS-U
Sub-Assembled Operator, 22mm, Selector Switch, Knob Handle, Plastic Bezel, 3 Positions, Return from Left
$9.45
