HW1M-L0101-PS-U
Alt: HW Series, Updated Design, This Item Replaced HW1M-L0101
$63.07
Sub-Assembled Operator, 22mm, Monolever Switch, Interlocking Type, Right-Left, Maintained
- Weight:
- 0.07 LBS
- Minimum Purchase:
- 1 unit
Description

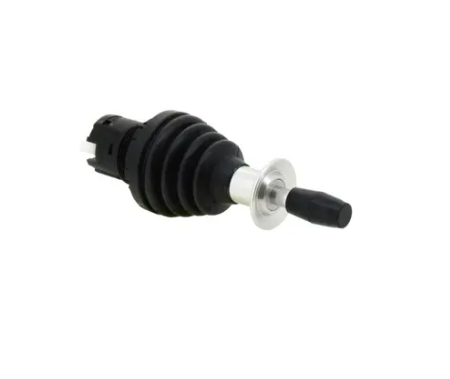

The IDEC HW Series monolever switch sub-assembled operator is used to build a 22mm HW Series monolever switch for directional control from a single lever. Right-left, up-down, and four-way up-down-right-left versions are available with maintained or spring return action depending on model. The operator is part of IDEC's updated HW Series design and pairs with the new HW-CN connecting units.
Key Features
- Fits 22mm panel mounting holes
- Right-left, up-down, or up-down-right-left lever directions, depending on model
- Maintained or spring return action, depending on model
- Interlocking type versions available, depending on model
- Universal operator design works with both screw terminal and push-in connecting units, so the terminal style can be changed by replacing only the rear connecting unit
- Use with updated HW-CN connecting units; updated operators are not compatible with previous-generation connecting units
- HW Series switches are rated UL Type 4X and IP65
- Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
