IDEC
HW1F-32LS-PS-U
Sub-Assembled Operator, 22mm, Illuminated Selector Switch, 3 Positions, Return from Left, Lever Operator, Blue
$17.95
Ships from manufacturer in ~54 days (as of 10/4/2026)

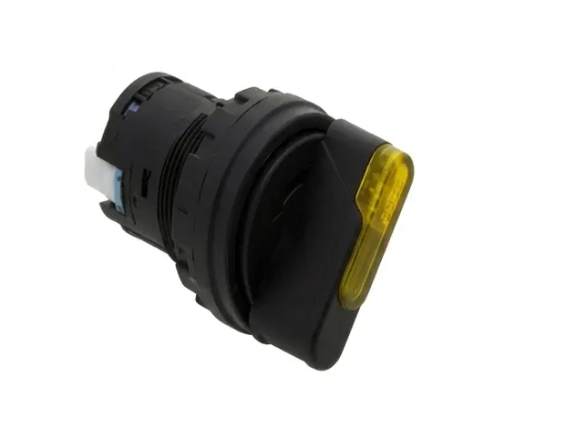

HW1F-33Y-PS-U
Alt: HW Series, Updated Design, This Item Replaced HW1F-33Y
$17.95
Sub-Assembled Operator, 22mm, Illuminated Selector Switch, 3 Positions, Return from Both Sides, Knob Operator, Yellow
- Weight:
- 0.05 LBS
- Minimum Purchase:
- 1 unit
Description
The IDEC HW Series illuminated selector switch sub-assembled operator is used to build a 22mm HW Series illuminated selector switch that shows the selected state at a glance. Two- and three-position versions are available with knob or lever operators, maintained or spring return action, and a range of illumination colors depending on model. In IDEC's updated HW Series design, the lamp holder is housed in the HW-UA1-FH full voltage adapter, and the operator pairs with the new HW-CN connecting units.
Key Features
- Fits 22mm panel mounting holes
- 2- or 3-position operation, depending on model
- Maintained, spring return from right, spring return from left, or spring return from both sides, depending on model
- Knob or lever operator, depending on model
- Amber, green, red, blue, white, and yellow colors, depending on model
- In the updated design, the lamp holder is located in the HW-UA1-FH full voltage adapter rather than in the connecting unit
- Universal operator design works with both screw terminal and push-in connecting units, so the terminal style can be changed by replacing only the rear connecting unit
- Use with updated HW-CN connecting units; updated operators are not compatible with previous-generation connecting units
- HW Series switches are rated UL Type 4X and IP65
- Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
HW1F-3G-PS-U
Sub-Assembled Operator, 22mm, Illuminated Selector Switch, 3 Positions, Maintained, Knob Operator, Green
$15.72
IDEC

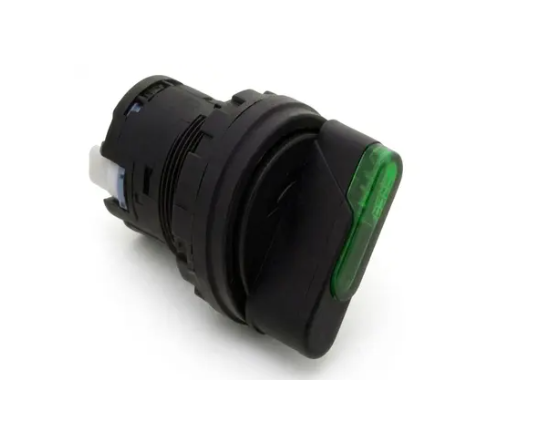

HW1F-2G-PS-U
