IDEC
HW1F-32LS-PS-U
Sub-Assembled Operator, 22mm, Illuminated Selector Switch, 3 Positions, Return from Left, Lever Operator, Blue
$17.95
Ships from manufacturer in ~54 days (as of 10/4/2026)

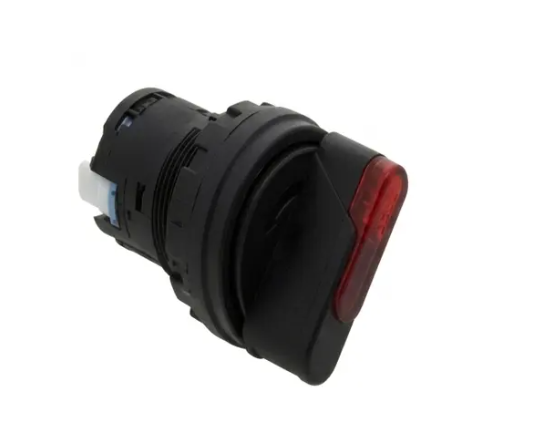

HW1F-32R-PS-U
Alt: HW Series, Updated Design, This Item Replaced HW1F-32R
$17.95
Sub-Assembled Operator, 22mm, Illuminated Selector Switch, 3 Positions, Return from Left, Knob Operator, Red
- Weight:
- 0.05 LBS
- Minimum Purchase:
- 1 unit
Description
The IDEC HW Series illuminated selector switch sub-assembled operator is used to build a 22mm HW Series illuminated selector switch that shows the selected state at a glance. Two- and three-position versions are available with knob or lever operators, maintained or spring return action, and a range of illumination colors depending on model. In IDEC's updated HW Series design, the lamp holder is housed in the HW-UA1-FH full voltage adapter, and the operator pairs with the new HW-CN connecting units.
Key Features
- Fits 22mm panel mounting holes
- 2- or 3-position operation, depending on model
- Maintained, spring return from right, spring return from left, or spring return from both sides, depending on model
- Knob or lever operator, depending on model
- Amber, green, red, blue, white, and yellow colors, depending on model
- In the updated design, the lamp holder is located in the HW-UA1-FH full voltage adapter rather than in the connecting unit
- Universal operator design works with both screw terminal and push-in connecting units, so the terminal style can be changed by replacing only the rear connecting unit
- Use with updated HW-CN connecting units; updated operators are not compatible with previous-generation connecting units
- HW Series switches are rated UL Type 4X and IP65
- Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
