50116205
50116205
Stationary bar code reader, 1,000 scans/s
Stationary bar code reader, 1,000 scans/s
Stationary bar code reader, 1,000 scans/s
Leuze

50116205

Alt: BCL 300i SF 100, Non-Cancellable / No Returns

$2,778.00

Stationary Barcode Reader, 1,000 Scans/Sec, 70-445mm, Line Scanner with Deflecting Mirror, NCNR

Minimum Purchase:
1 unit
Adding to cart… The item has been added
50116205
Stationary bar code reader, 1,000 scans/s
Stationary bar code reader, 1,000 scans/s
Stationary bar code reader, 1,000 scans/s
50116205
Stationary bar code reader, 1,000 scans/s
Stationary bar code reader, 1,000 scans/s
Stationary bar code reader, 1,000 scans/s
Description

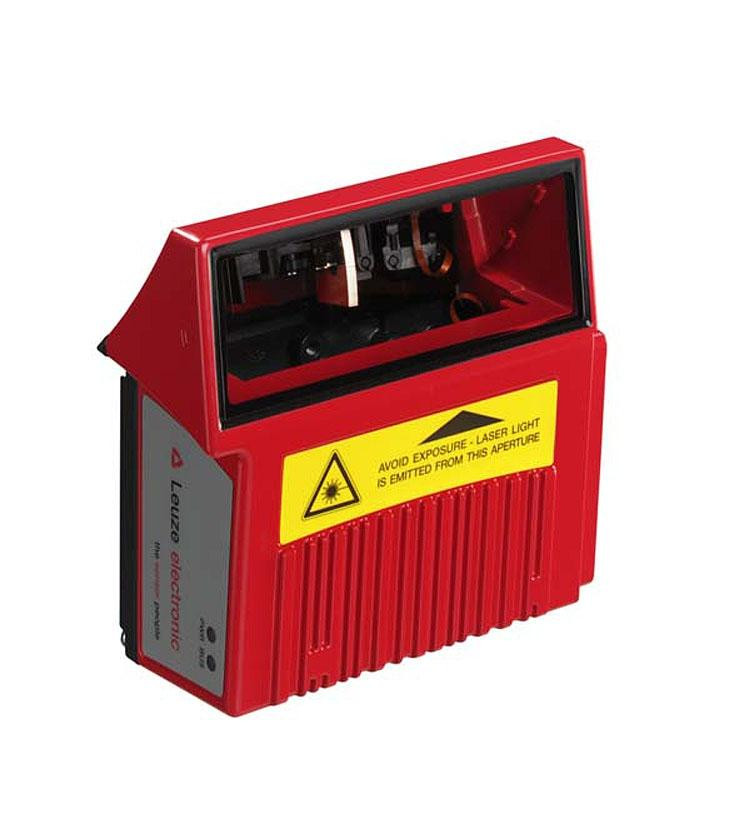

The Leuze BCL 300i series is a modular, stationary barcode reader that features code fragment and modular connection technology as well as a number of equipment features.

Additonal features of these bar code readers:

  • Integrated fieldbus connectivity (PROFIBUS, PROFINET, EtherNet, EtherNet/IP, EtherCAT, TCP/IP, multiNet, RS 232/422/485) with Ethernet switch function (for linear topology)
  • Full CRT (code reconstruction technology) also detects heavily damaged or soiled codes
  • webConfig - an operating-system independent, browser-based configuration tool
  • High-quality optics with great depth of field and large opening angle
  • Compact housing design for problem-free placement directly at the conveyor line
  • Modular connector hood, terminal hood and terminal box and graphical display
  • All optics models are also available with optional heating

Marshall Wolf Automation is your authorized Leuze distributor!

Features Include:

  • Supply Voltage: 18 - 30 VDC
  • Power Consumption, Max.: 4.5 W

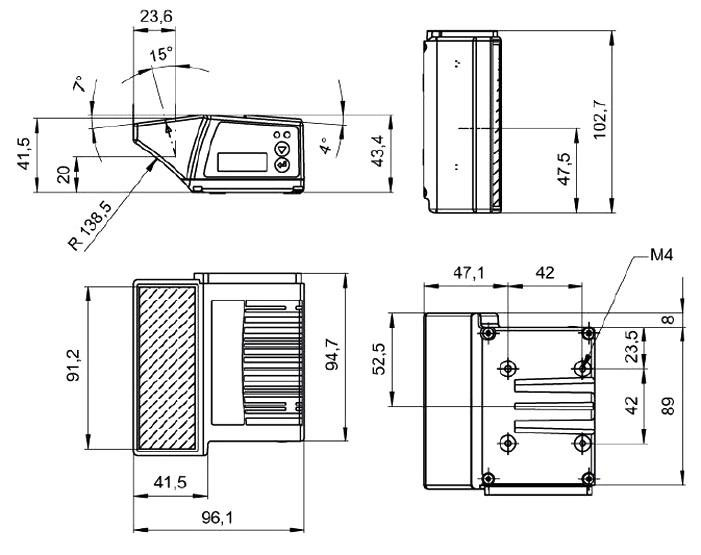

  • Dimensions (W x H x L): 103 mm x 44 mm x 96 mm
  • Housing Material: Metal, Diecast aluminum
  • Lens Cover Material: Glass
  • Type of Fastening: Dovetail grooves, Fastening on back, Via optional mounting device
  • Scanning Rate, Typical: 1,000 scan/s
  • Bar Codes per Reading Gate, Max. Number:  64 Piece(s)
  • Reading Distance: 70 - 445 mm
  • Light Source: Laser, Red
  • Laser Light Wavelength: 655 nm
  • Laser Class: 2, IEC/EN 60825-1:2007
  • Module Size: 0.3 - 0.5 mm
  • Reading Method: Raster scanner with deflecting mirror
  • Beam Deflection: By means of rotating polygon mirror wheel + deflecting mirror
  • Light Beam Exit: Lateral with deflecting mirror

Functions:

  • AutoConfig, AutoControl, AutoReflAct, Code fragment technology, Alignment mode, LED indicator, Reference code comparison

Cody Types, Readable:

  • 2/5 Interleaved, Code 128, Code 39, EAN 8/13, UPC, Codabar, Code 93, GS1 Databar Omnidirectional, GS1 Databar Limited, GS1 Databar Expanded

Connection:

  • Type of Connection: Plug Connector
  • Function: Data interface, PWR / SW IN/OUT, Service interface, Connection to device, BUS OUT
  • Number of Pins: 32-pin
  • Type: Male
