Patlite

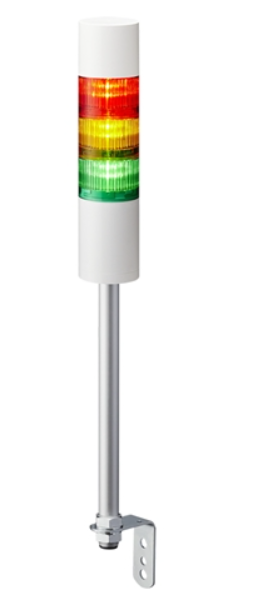

LR6-302LJBW-RYGZ
Stack Light, Andon, Ø60 UL CE IP65 24VDC, Pole Mount with L-bracket, Cable, Flashing/Buzzer, Off-White, Clear Lens, NCNR
$210.80
LR4-302LJBW-RYGZ
$197.20
Stack Light, Andon, Ø40mm, 24VDC, Red/Amber/Green LED, Clear Lens, Flashing/Buzzer, 285mm Pole Mount, L-Bracket, Cable, Off-White Body, IP65, UL CE
- Weight:
- 1.32 LBS
- Minimum Purchase:
- 1 unit
Description
The Patlite LR4 Series Ø40mm LED signal tower is designed for machine status indication, andon systems, and process alerts in space-constrained installations. The series provides a modular, twist-and-lock build that lets LED and sound modules be configured or replaced in the field without tools, and supports both 24V DC and 100-240V AC power. Its IP65-rated housing helps the tower hold up to dust and washdown in everyday industrial environments.
Key Features
- IP65 (IEC 60529) rated for indoor industrial use
- Modular twist-and-lock design for tool-free field configuration of LED and sound modules
- Available in 24V DC and 100-240V AC (100-240V AC offered in off-white body only)
- Pole mount (L-bracket, circular bracket, or folding bracket) and direct mount options
- Single or multi-tier LED configurations available in red, amber, green, blue, and white/clear
- Enclosed sound module produces up to 85 dB omnidirectional buzzer tone at 1m
- Operating ambient temperature of -20C to +50C
- Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
- Compatible with Patlite's WD wireless data acquisition system via the WDT-4LR-Z2 transmitter and WDR-LE-Z2-PRO receiver, sold separately
Certifications
- UL Listed
- CE marked
- RoHS compliant
- UKCA marked
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Patlite

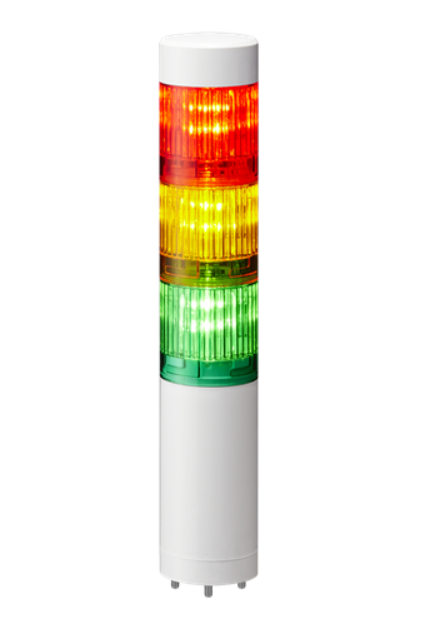

LR4-302WJNW-RYGZ
Stack Light, Andon, Ø40mm, 24VDC, Red/Amber/Green LED, Clear Lens, No Flashing/Buzzer, Direct Mount with Cable, Off-White Body, IP65, UL CE
$137.70
Patlite

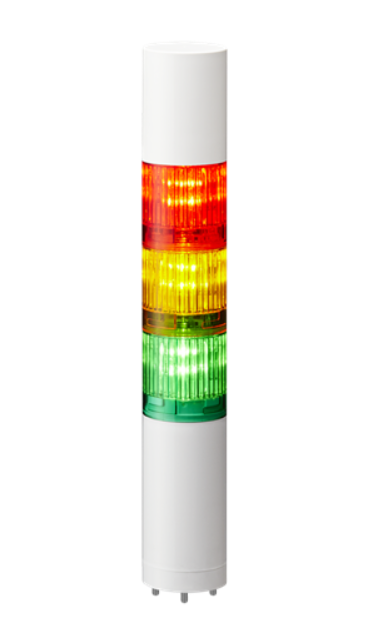

LR4-302WJBW-RYGZ
Stack Light, Andon, Ø40mm, 24VDC, Red/Amber/Green LED, Clear Lens, Flashing/Buzzer, Direct Mount with Cable, Off-White, IP65, UL CE
$174.25
Patlite
LR4-302LJBW-RYG
Stack Light, Andon, Ø40mm, 24VDC, Red/Amber/Green LED, Flashing/Buzzer, 285mm Pole Mount with L-Bracket and Cable, Off-White Body, IP65, UL CE
$169.00
Patlite
LR4-302LJNW-RYGZ
Stack Light, Andon, Ø40mm, 24VDC, Red/Amber/Green LED, Clear Lens, No Flashing/Buzzer, 285mm Pole Mount, L-Bracket, Cable, Off-White Body, IP65, UL CE
$159.80
