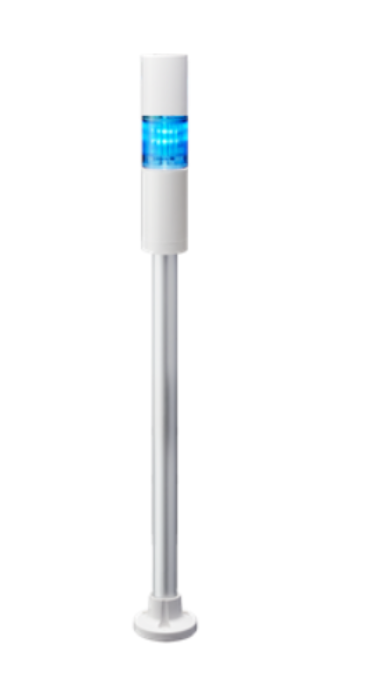

LR4-1M2PJBW-B

The Patlite LR4 Series Ø40mm LED signal tower is designed for machine status indication, andon systems, and process alerts in space-constrained installations. The series provides a modular, twist-and-lock build that lets LED and sound modules be configured or replaced in the field without tools, and supports both 24V DC and 100-240V AC power. Its IP65-rated housing helps the tower hold up to dust and washdown in everyday industrial environments.

Key Features

• IP65 (IEC 60529) rated for indoor industrial use
• Modular twist-and-lock design for tool-free field configuration of LED and sound modules
• Available in 24V DC and 100-240V AC (100-240V AC offered in off-white body only)
• Pole mount (L-bracket, circular bracket, or folding bracket) and direct mount options
• Single or multi-tier LED configurations available in red, amber, green, blue, and white/clear
• Enclosed sound module produces up to 85 dB omnidirectional buzzer tone at 1m
• Operating ambient temperature of -20C to +50C
• Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
• Compatible with Patlite's WD wireless data acquisition system via the WDT-4LR-Z2 transmitter and WDR-LE-Z2-PRO receiver, sold separately

Certifications

• UL Listed
• CE marked
• RoHS compliant
• UKCA marked
