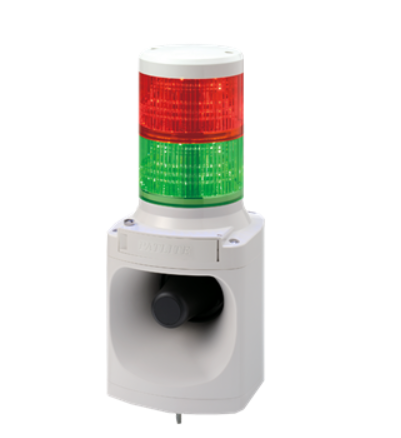

LKEH-202FVPUL-RG+V0212

The Patlite LKEH Series combines a 100mm diameter signal tower with a high-output audible horn and, on FV models, a field-programmable voice synthesizer, delivering enhanced visibility and sound notification for large facilities. The series is built for high-vibration environments and uses a modular design with interchangeable, stackable LED tiers, up to 4 tiers, and a single common wire controls both light and sound functions.

Key Features

• Ultra-bright LEDs with 100mm diameter lens, continuous or flashing (60 flashes/min) illumination
• Available in red, amber, green, blue, and white LED tiers, up to 4 tiers
• Adjustable-volume audible alarm up to 105 dB at 1m
• FV models add a field-programmable voice synthesizer via SD card (sold separately), supporting up to 63 seconds of recorded audio across 5 channels (bit input) or 31 channels (binary input)
• Available in 24V DC or 100-240V AC
• Tested to withstand 2G vibration for high-vibration environments
• IP53 protection rating

Certifications

• CE marked
• RoHS compliant
• UL Listed (c-UL pending on select models)
