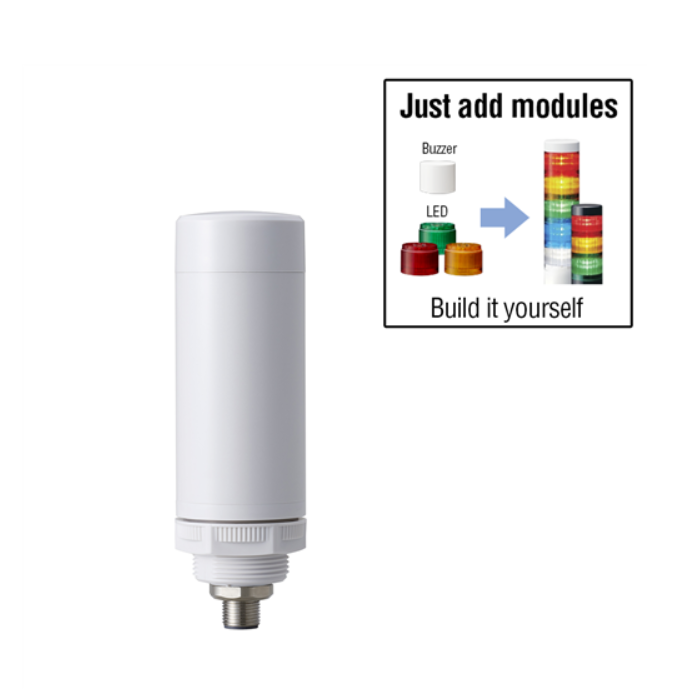

The Patlite LR4 Series Ø40mm LED signal tower is designed for machine status indication, andon systems, and process alerts in space-constrained installations. The series provides a modular, twist-and-lock build that lets LED and sound modules be configured or replaced in the field without tools, and supports both 24V DC and 100-240V AC power. Its IP65-rated housing helps the tower hold up to dust and washdown in everyday industrial environments.
Key Features
IP65 (IEC 60529) rated for indoor industrial use
Modular twist-and-lock design for tool-free field configuration of LED and sound modules
Available in 24V DC and 100-240V AC (100-240V AC offered in off-white body only)
Pole mount (L-bracket, circular bracket, or folding bracket) and direct mount options
Single or multi-tier LED configurations available in red, amber, green, blue, and white/clear
Enclosed sound module produces up to 85 dB omnidirectional buzzer tone at 1m
Operating ambient temperature of -20C to +50C
Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
Compatible with Patlite's WD wireless data acquisition system via the WDT-4LR-Z2 transmitter and WDR-LE-Z2-PRO receiver, sold separately
