Patlite
B72100182-4F1
Replacement Module, LED, AC/24VDC, Blue, Use w/ MP (No Returns) (B72100114-4F1)
$45.00
B72100182-2F1
$45.00

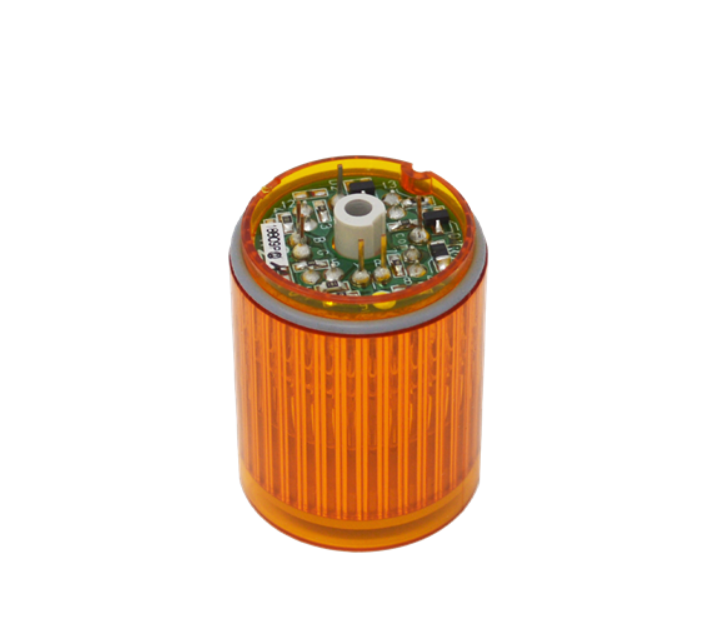

LED Module, Amber LED, Ø30mm, Accessory For MP/MPS Series, NCNR
- Weight:
- 0.15 LBS
- Minimum Purchase:
- 1 unit
Description
The Patlite MP/MPS Series is a slim 30mm LED stack light designed for compact indoor equipment where space is limited. The series ships pre-assembled and pre-wired, with interchangeable, stackable LED modules, and uses a hybrid prism-cut lens for even light distribution.
Key Features
- IP65 rated, 30mm diameter body
- MP (standard body, 220mm) and MPS (short body, 45mm) length options; MP-C adds an M12 connector adaptor (cable sold separately)
- Available in 1 to 5 LED tiers, in red, amber, green, blue, and clear/white (MP-C limited to 3 tiers: red, amber, green)
- Continuous illumination only
- Direct mount with M22 mounting nut and sealing gasket; pole, L-type, and folding bracket mounting also available
- NPN or NPN/PNP open-collector output
- Optional slim buzzer module (MP-B), adjustable up to 80 dB at 1m, compatible with MP, MPS, and MP-C
- Available in 24V AC/DC
Certifications
- UL Listed
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Patlite
B72100182-1F1
Replacement Module, LED, AC/24VDC, Red, Use w/ MP (No Returns) (B72100114-1F1)
$36.00
Patlite
B72100182-3F1

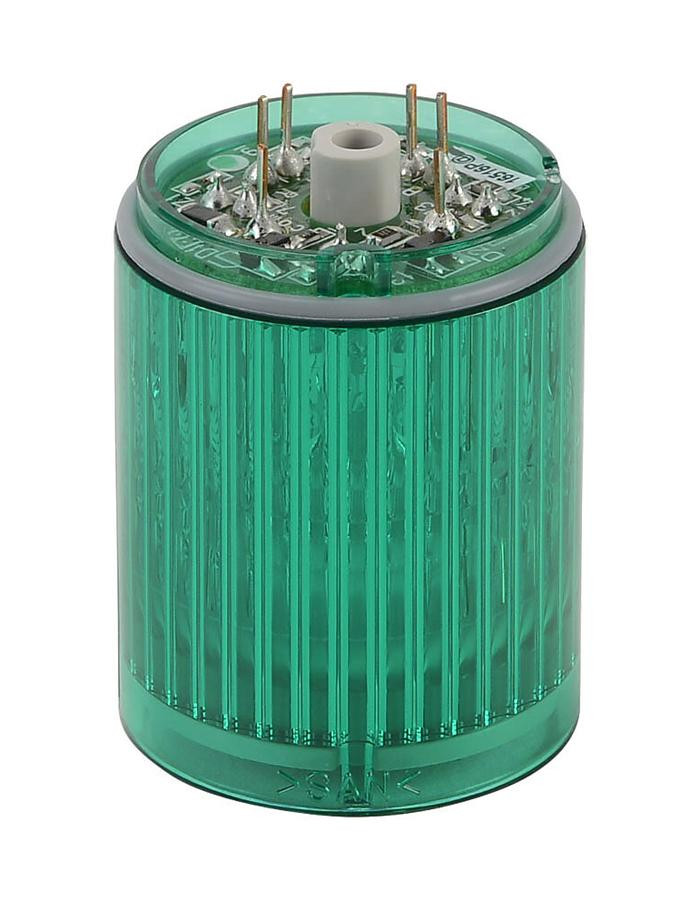

Replacement Module, LED, AC/24VDC, Green, Use w/ MP (No Returns) (B72100114-3F1)
$45.00
Patlite
B72100182-7F1
Replacement Module, LED, AC/24VDC, Clear/White, Use w/ MP (No Returns) (B72100114-7F1)
$45.00
