Kacon
KMSR-DS0302
SSR, Hockey Puck, Single Phase, Input 4-32VDC, 30 Amp (30A), Load Voltage 90-240VAC, Zero Crossing, Solid State Relay, KMSR Series
$25.57
KMSR-DS0604
Alt: KMSR Series
$55.01
SSR, Hockey Puck, Single Phase, Input 4-32VDC, 60 Amp (60A), Load Voltage 90-480VAC, Zero Crossing, Solid State Relay, KMSR Series
- Minimum Purchase:
- 1 unit
Description

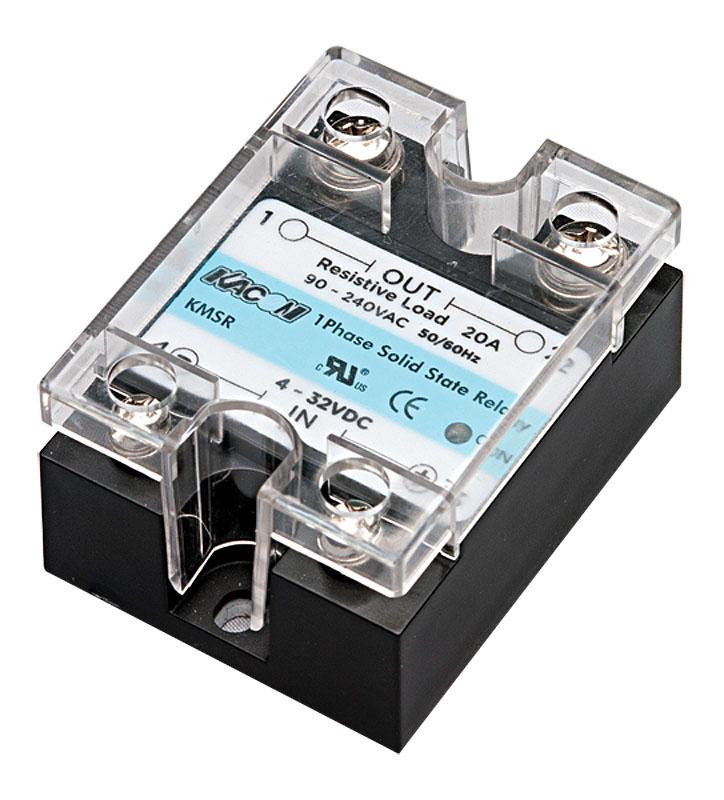

The KMSR series is a cost-effective hockey puck style solid state relay that is available in single or three phase.
Features Include:
- Rated Input Control Voltage: 4-32VDC
- Input Current: 3 - 35mA Maximum
- Rated Output Load Voltage: 90 - 480VAC
- Peak Output Voltage: 1200V
- Insulation Resistance: 100MΩ/500VDC (btwn Terminal & Case)
- Dielectric Strength: 2500VAC(50/60Hz 1minute)
- Vibration Resistance: 10-55Hz, amplitude: 1.5mm,x,y,z each axis 2 hours
- Shock Resistance: 100m/s²,s,y,z each axis 3times
- LED indicator of the control input status
- Clip cover of IP20 touch protection
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
KMSR-DT0504
SSR, Hockey Puck, Three Phase, Input 4-32VDC, 50 Amp (50A), Load Voltage 90-480VAC, Zero Crossing, Solid State Relay, KMSR Series
$123.10
Kacon
KMSR-AS0504
SSR, Hockey Puck, Single Phase, Input 90-26VAC, 50 Amp (50A), Load Voltage 90-480VAC, Zero Crossing, Solid State Relay, KMSR Series
$50.30
Kacon
KMSR-DT0102
SSR, Hockey Puck, Three Phase, Input 4-32VDC, 10 Amp (10A), Load Voltage 90-240VAC, Zero Crossing, Solid State Relay, KMSR Series
$47.23
Kacon
KMSR-DS0402
SSR, Hockey Puck, Single Phase, Input 4-32VDC, 40 Amp (40A), Load Voltage 90-240VAC, Zero Crossing, Solid State Relay, KMSR Series
$28.90
