Pizzato
SR BD42AN2
Magnetic Safety Sensor, 1NO+1NC, PVC 2m Cable, Actuator Sold Separately (SM B01F or SM B02F), IP67, IP69K
$51.28
We pause this Memorial Day to honor and remember those that gave their lives in service to our country.
Our offices will close at 1 p.m. on Friday, May 22nd and reopen on Tuesday, May 26th.
SR BD42AN2-B01F
Alt: SR B Series
$47.08
Magnetic Safety Sensor Complete with Actuator
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

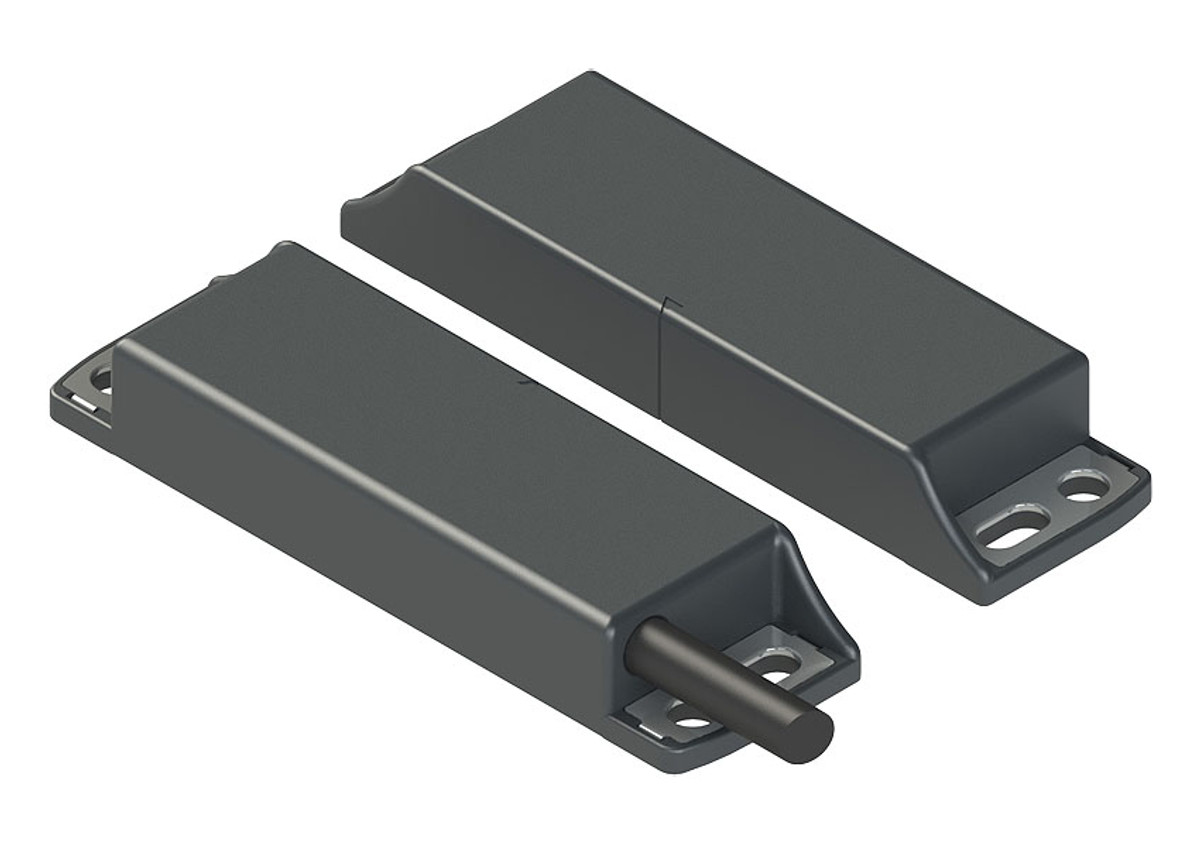

Our Pizzato SR B series of coded magnetic safety sensors are rated IP67 (EN 60529) and IP69K (ISO 20653).
- Output contacts that are available: 2NC, 1NO+2NC or 1NO+1NC
- Stainless steel fixing plates
- Insensitive to dirt
- IP67 and IP69K
- Coded actuator
- Technopolymer housing
- M8 or M12 connector
This series is available as a complete set (sensor and actuator), a single sensor or just the actuator:
- -B01F is complete with actuator SM B01F, actuation distance 5mm
- -B02F is complete with actuator SM B02F, actuation distance 8mm
- Single actuators may be purchased as well: SM B01F (5mm actuation distance) or SM B02F (8mm actuation distance)
Features Include:
- Housing: Polymer housing, with metal fixing plates
- Protection Degrees: IP67 and IP69K
- Contacts: 1NC + 1NO (with door closed)
- Type of cable or connector: PVC cable, 4x0.25 mm²
- Actuator: With actuator, actuation distance 5 mm
- Actuation without mechanical contact
- Stainless steel fixing plates
- Insensitive to dirt
Technical Information:
