SR AL40AN3

SR AL40AN3

Alt: SR A Series

$59.44

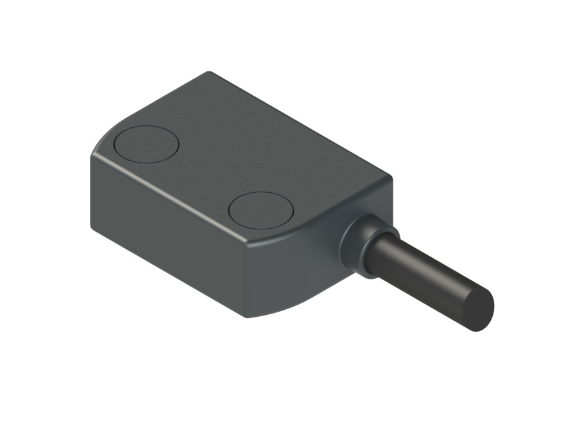

Magnetic Safety Sensor

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Our Pizzato SR A series of coded magnetic safety sensors are rated IP67 (EN 60529) and IP69K (ISO 20653).

  • Output contacts that are available: 2NC, 1NO+2NC or 1NO+1NC
  • Insensitive to dirt
  • IP67 and IP69K
  • Coded actuator
  • Technopolymer housing
  • M8 or M12 connector

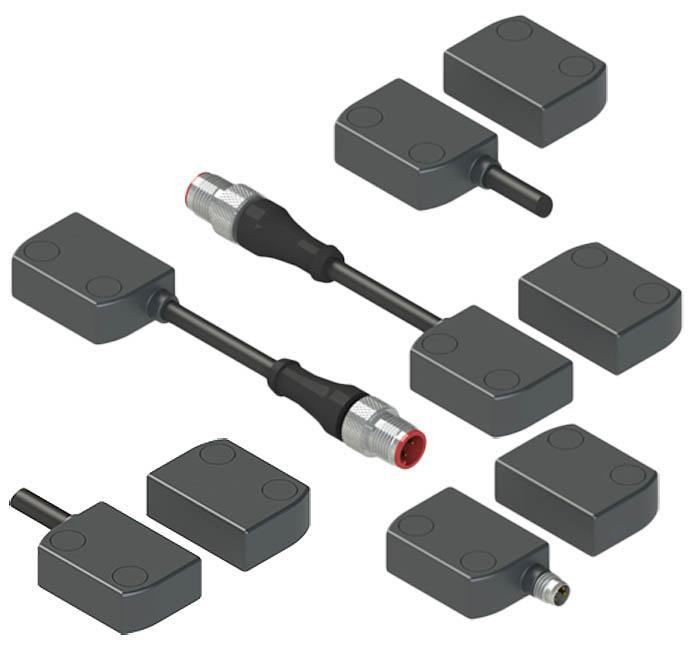

This series is available as a complete set (sensor and actuator), a single sensor or just the actuator:

  • -A01N is complete with actuator SM A01N, actuation distance 5mm
  • Single actuators may be purchased as well: SM A01N (5mm actuation distance)





Series Features Include:

  • Housing: Technopolymer housing
  • Contacts: 2NC, 1NC+2NC, or 1NC+1NO
  • Type of cable or connector: PVC cable, 4x0,25 mm²
  • Coded Actuator
  • Protection degrees: IP67 and IP69K
  • Version with M8 or M12 connector
  • Insensitive to dirt
