$66.49
SR AD40ALK-A01N
Alt: SR A Series
$82.67
Safety Coded Magnetic Sensor with Actuator, Polymer Housing, Right Side Connection, 2NC (with Door Closed), M8 Connector, 4 Poles, 5mm Actuation Distance
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description

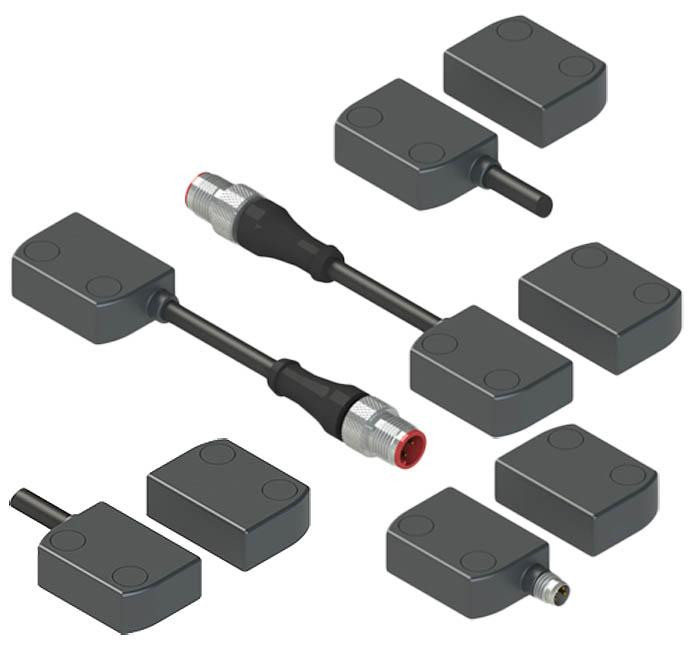

Our Pizzato SR A series of coded magnetic safety sensors are rated IP67 (EN 60529) and IP69K (ISO 20653).
- Output contacts that are available: 2NC, 1NO+2NC or 1NO+1NC
- Insensitive to dirt
- IP67 and IP69K
- Coded actuator
- Technopolymer housing
- M8 or M12 connector
This series is available as a complete set (sensor and actuator), a single sensor or just the actuator:
- -A01N is complete with actuator SM A01N, actuation distance 5mm
- Single actuators may be purchased as well: SM A01N (5mm actuation distance)
Features Include:
- Housing: Polymer housing, right side connection
- Contacts: 2NC (with door closed)
- Type of cable or connector: M8 connector, 4 poles
- Coded Actuator, Actuation distance 5 mm
- Protection degrees: IP67 and IP69K
- Insensitive to dirt
Technical Information:
Read more about Switches here!
