Speed Control, Variable AC Voltage Supply

More Views

  • Speed Control, Variable AC Voltage Supply

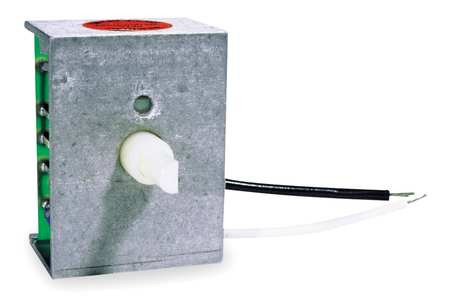

Dart Controls - AC03-05S

Alternate Part Number: Dart Controls AC03

Quick Overview

Speed Control, Variable AC Voltage Supply., Speedpot with On/Off, 120VAC In, 2.5 Max Amps
$43.50

Standard Stock

- +

Our customer's first choice for AC speed control of single phase motors! For use with resistive loads, permanent split-capacitor, permanent split-phase or universal motors. Ideal for small blowers or lighting applications!

Triac Controls adjust the voltage output of an AC supply, similar to a light dimmer or ceiling fan control. Wen applied properly, these triac controls can be used
with single phase AC motors to adjust their speed. They can also be used with resistive loads such as lighting.

It is important to note Triac Controls will NOT work with capacitor start motors, a common motor for single phase applications. Capacitor start motors are not designed to be run variable speed. Visually, these motors have a large hump on the top or side which houses the motor capacitor. Trying to slow these motors will be stopped by the motor capacitor.

Motors which may have their speed adjusted using these triac controls are Permanent Split Capacitor (PSC), Permanent Split Phase (PSP), Shaded Pole and Universal. These are all single phase motor types which might adjust speed using triac controls- these applications may still have limitations.

It is not likely a triac control will offer a wide range of speed adjustment - it likely will be in the top half of speed pot adjustment. The user may need to turn the triac control output up to get the motor moving before slowing down. We recommend testing these triac controls with your application.

Additional Information
Part Number AC03-05S
Product Series AC03 Series
Speed Controller Type AC Triac Controls
Housing/Enclosure No
Voltage 110/120VAC
Availability Standard Stock
Product Series No
Weight - lbs. 0.3015
Base Unit of Measure Each
Specification Tab
  • 120VAC supply - 0 to 120VAC output
  • 2.5A continuous
  • Output adjust potentiometer includes On/Off switch
  • cULs Recognized
  • Controls most single phase AC motors and restrictive loads
    • Not equipped to handle capacitor start motors
  • Ideal for vibratory feeder, fan, pump, heating and lighting applications
  • Single phase AC input and fully variable AC output
  • Enclosed version (55/57 series) includes:
    • Rugged housing
    • Power on/off switch
    • Power on indicator lamp
    • Front access fuse
    • Convenient input and output cords and plugs
Resources

Need More Information?

Check Out What Makes Dart Controls Great!


  • 120VAC supply - 0 to 120VAC output

  • 2.5A continuous

  • Output adjust potentiometer includes On/Off switch

  • cULs Recognized

  • Controls most single phase AC motors and restrictive loads

    • Not equipped to handle capacitor start motors



  • Ideal for vibratory feeder, fan, pump, heating and lighting applications

  • Single phase AC input and fully variable AC output

  • Enclosed version (55/57 series) includes:

    • Rugged housing

    • Power on/off switch

    • Power on indicator lamp

    • Front access fuse

    • Convenient input and output cords and plugs
