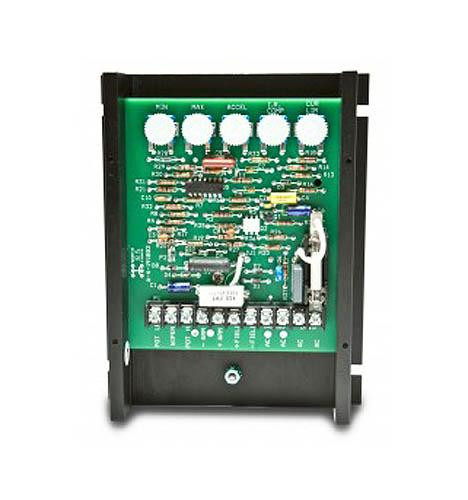

253G-200C

Our Dart Controls 253G series offers flexibility, reliability, and value. This general purpose, economical control is rated to 2 horsepower, provides the ultimate in standard features and versatility including: dual voltage (120/240VAC), adjustable H.P. settings, packaged power bridge, barrier terminal strip, fully rated - no auxiliary heatsink required, and chassis (253G-200C model) or NEMA 4/12 enclosure (253G-200E model).

Input voltage: 12/240 VAC

Output voltage: 0-90/180 VDC

Horsepower range:

• 1/8 to 1hp (90 volt)
• 1/3 to 2 hp (180 volt)

Designed and manufactured right in Indiana!

• Dual voltage - 120/240 VAC, 50/60Hz
• Adjustable horsepower settings
• Barrier terminal strip
• Packaged bridge supply (fullwave)
• 1% speed regulation;
• ±1/2% with tach feedback
• Adjustable Minimum speed
• Adjustable Maximum speed
• Adjustable IR Compensation
• Adjustable Linear Acceleration
• Adjustable Current Limit
• Line voltage compensation
• 5K ohm speed pot, knob and dial included
• Power on/off switch (enclosed models)
• 50:1 speed range
• Overload capacity: 150% for one minute
• Transient voltage protection
• Inhibit circuit
• Enclosed models rated NEMA 4/12
