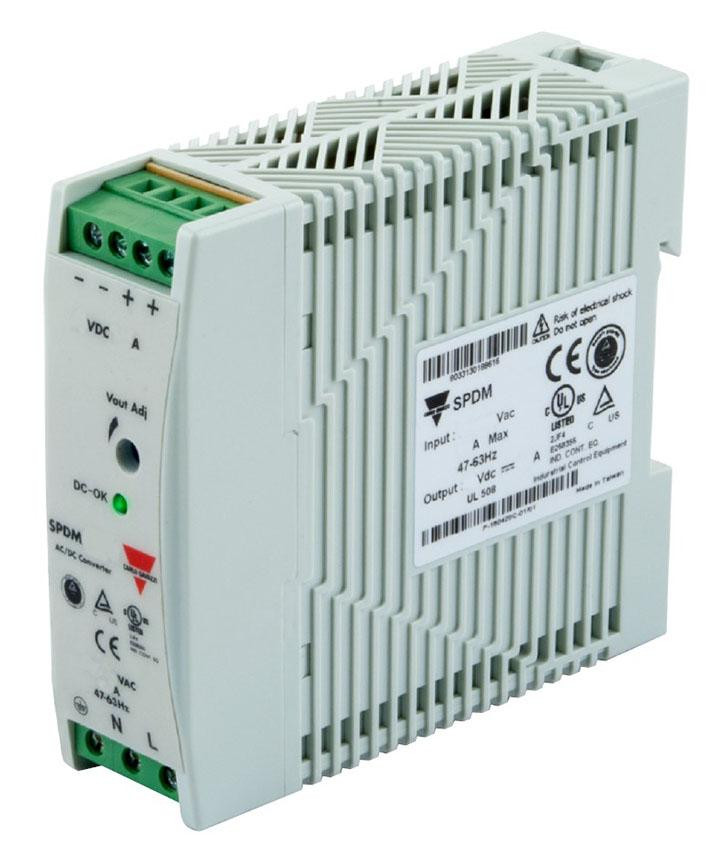

SPDM24501B
Alt: SPDM Series
$72.25
Switching Power Supply, 24VDC, 50W, Single Phase, DIN Rail Mounting, Spring Connector Terminals
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated Input Voltage (Io nom): 100VAC min / 240VAC max
- Voltage Range: (AC in) 85 ~ 264VAC / (DC in) 120 ~ 375VDC
- Inrush Current (115/230VAC): 30 / 60A
- Dimensions H x D x W: 90 x 100 x 30mm (3.54” x 3.937” x 1.181”)
- Power in compact dimensions. The SPDM provide up to +30% space saving when compared to SPD
- Reliable and cost saving. The SPDM provide high reliability power at an attractive price level
- Low power loss, high efficiency. The compact design results in low energy losses and high efficiency
- Intuitive indication. A clear LED indicate the status of the power supply
- Universal AC, DC input range. SPDM Series can be powered with AC Voltage (85VAC to 264VAC) or with DC Voltage (130VDC to 350VDC).
- Reliable critical protection. The operation safety is guaranteed by the various output protections: Over Voltage (OVP), Over Load (OLP), Short Circuit (SCP) and Over Temperature (OTP).
- High efficiency and wide operating ambient temperature. These power supplies have an efficiency up to 88%.
- Ease of installation. The SPDM can be installed in 5 different orientations, enabling the unit to fit easily into installations with limited space.
