8824313060
Alt: Solid State Module SSR 3P-60A-480V-NDP3-180 + Fan
$315.00

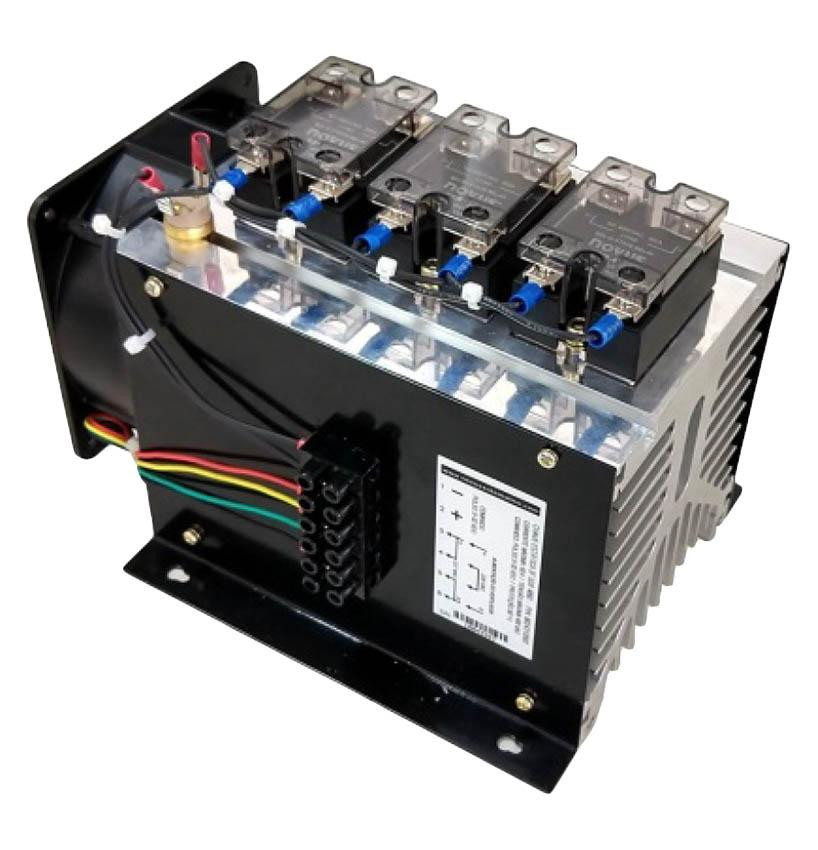

Solid State Module with Fan, 3-Phase, SSR 3P-60A-480V-NDP3-180 + Fan
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Load Current: 60 A rms
- Control Voltage: 3 to 32 Vcc
- Control Current: 6 to 20 mAcc
- Load Voltage: 40 to 480 V rms
- Voltage Drop: 1.5 to 1.8 V rms
- Leakage Current: 5.0 mA rms
- Frequency: < 5.0 Hz
- LED status indicator
- Internal snubber for dv/dt protection
- Trigger in zero crossing
- Triggering voltage: 4 to 32 Vdc
- High switching speed
- Heatsink suitable for rated current
- Built-in fan
- Internal overheating protection (80 °C)
- The required connections are already made
- Optical isolation between command and power
- High noise immunity
- Requires minimum power for operation
- Does not generate EMI or IRF
