Sprecher and Schuh
PCS-085-600V
Soft Starter, 85 Amps, 100/240VAC Control Voltage, 25hp@200V / 30hp@230V / 60hp@460V / 75hp@575V, Open Type, PCS Series
$1,997.29
PCS-019-600V
$561.67
Soft Starter, Open, 19A, 6.3-19A Overload Range, 200-600VAC 3 Phase, 100-240VAC Control Voltage, 5hp@200V / 5hp@230V / 10hp@460V / 15hp@575V, Built-In Bypass and Electronic Overload
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description

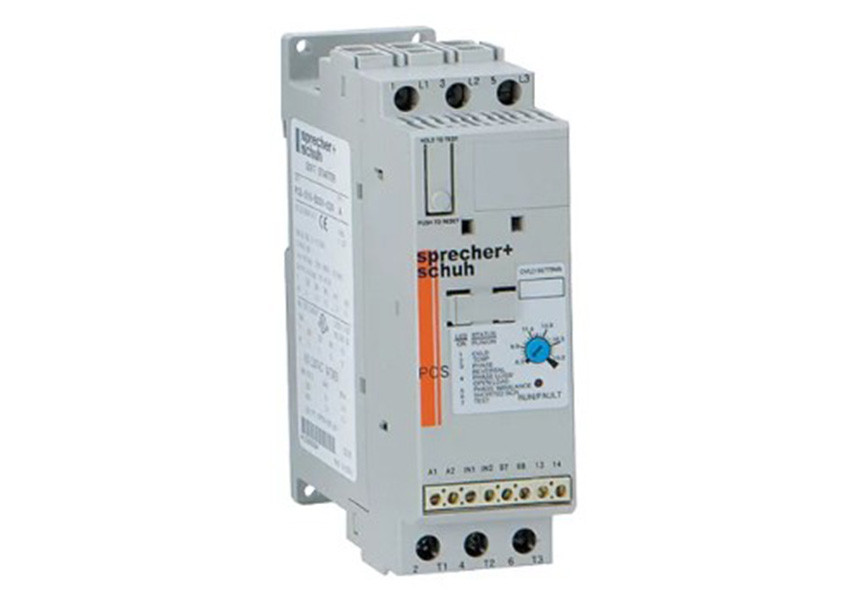

The Sprecher + Schuh PCS softstarter is a compact, intelligent motor controller for reducing starting current and mechanical stress on three-phase motors. It offers selectable soft-start modes plus a soft-stop mode for controlled deceleration, and includes a built-in electronic overload and SCR bypass. Typical applications include compressors, fans, lifts, chillers, and conveyors.
Key Features
- 200-600VAC three-phase motor supply
- 100-240VAC control voltage (24VAC/DC control versions available separately)
- Soft start with kickstart, current limit starting, and soft stop modes
- Built-in electronic overload with selectable trip class OFF, 10, 15, or 20 and manual or automatic reset
- Bypass contactor on each phase removes the load from the SCRs once the motor is up to speed
- Line or inside-the-delta (3-wire or 6-wire) motor connection selected by DIP switch; Wye-Delta compatible
- Digital rotary switches for quick setup
- LED fault indication for overload, overtemperature, phase reversal, phase loss/open load, phase imbalance, and shorted SCR
- Internal NO auxiliary contact; additional 1 or 2-pole auxiliary contacts snap on the right side
- Push-to-test function for checking fault conditions
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Sprecher and Schuh
PCS-060-600V
Soft Starter, Open, 60A, 20-60A Overload Range, 200-600VAC 3 Phase, 100-240VAC Control Voltage, 15hp@200V / 20hp@230V / 40hp@460V / 50hp@575V, Built-In Bypass and Electronic Overload
$1,540.47
Sprecher and Schuh
PCS-030-600V
Soft Starter, 30 Amps, 100/240VAC Control Voltage, 7.5hp@200V / 10hp@230V / 20hp@460V / 25hp@575V, Open Type, PCS Series
$705.14
Sprecher and Schuh
PCS-201-600V
Soft Starter, Open, 201A, 67-201A Overload Range, 200-600VAC 3 Phase, 100-240VAC Control Voltage, 60hp@200V / 75hp@230V / 150hp@460V / 200hp@575V, Built-In Bypass and Electronic Overload
$4,631.09
Sprecher and Schuh
PCS-251-600V
Soft Starter, Open, 251A, 84-251A Overload Range, 200-600VAC 3 Phase, 100-240VAC Control Voltage, 75hp@200V / 100hp@230V / 200hp@460V / 250hp@575V, Built-In Bypass and Electronic Overload
$5,406.19
