Available Now! SSW050085T2246TPZ

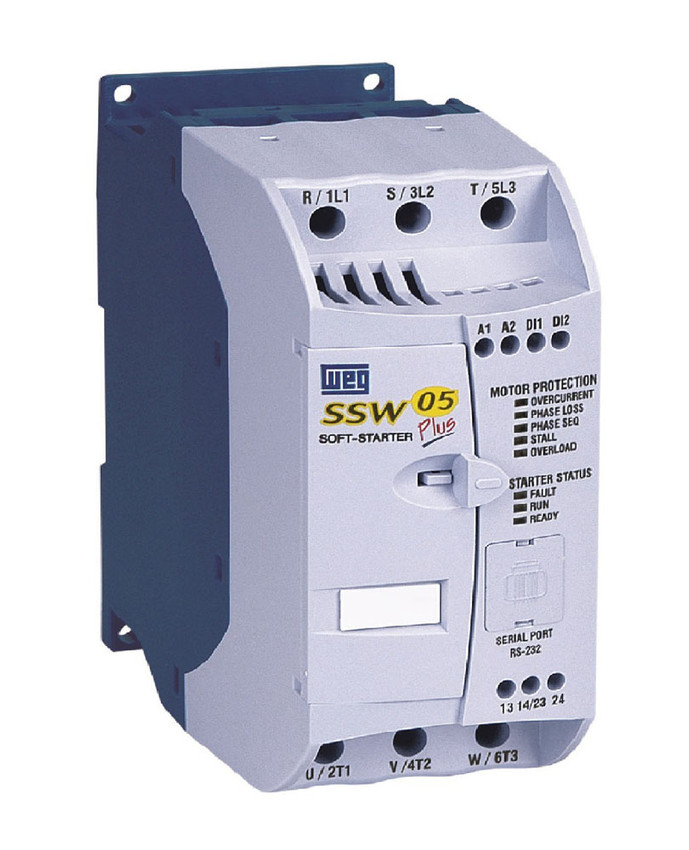

Product image is representative only, please verify specifications.

Available Now! (2 in stock)
Weg

SSW050085T2246TPZ

Alt: 10413825, This is the Latest Version of SSW050085T2246EPZ, 10052035

$843.02

Soft Starter, Compact, 3 Phase, 30hp, 85 Amps, 208-480V, Variable Torque, Built In Bypass, Please Note The Suffix Update From EPZ to TPZ Was Only Due to A New Manual Included

Weight:
6.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Series Features Include:

  • 208 - 480V, 50/60Hz input power supply
  • Duty cycle: 300% rated current during 10 seconds, 4 starts per hour
  • Built-in bypass contacts
  • One digital input for Start/Stop (90 - 250 Vac)
  • One digital input for Fault Reset (90 - 250 Vac)
  • One relay output for Run indication (1 Amp - 250V)
  • One relay output for Full Voltage indication (1 Amp - 250V)
  • RS-232 serial port
  • Adjustable acceleration and deceleration ramps (1 - 20 seconds)
  • For high inertia loads, see SSW07 product line.
  • Adjustable pedestal voltage (30 - 80% of line voltage)
  • Protective features: Motor overload, over current and locked rotor, SCR overload, phase loss and phase sequence
  • DIN rail or direct mount
  • Ambient: 32ºF (0ºC) to 131ºF (55ºC), 3300ft (1000m) altitude, 90% non-condensing humidity
