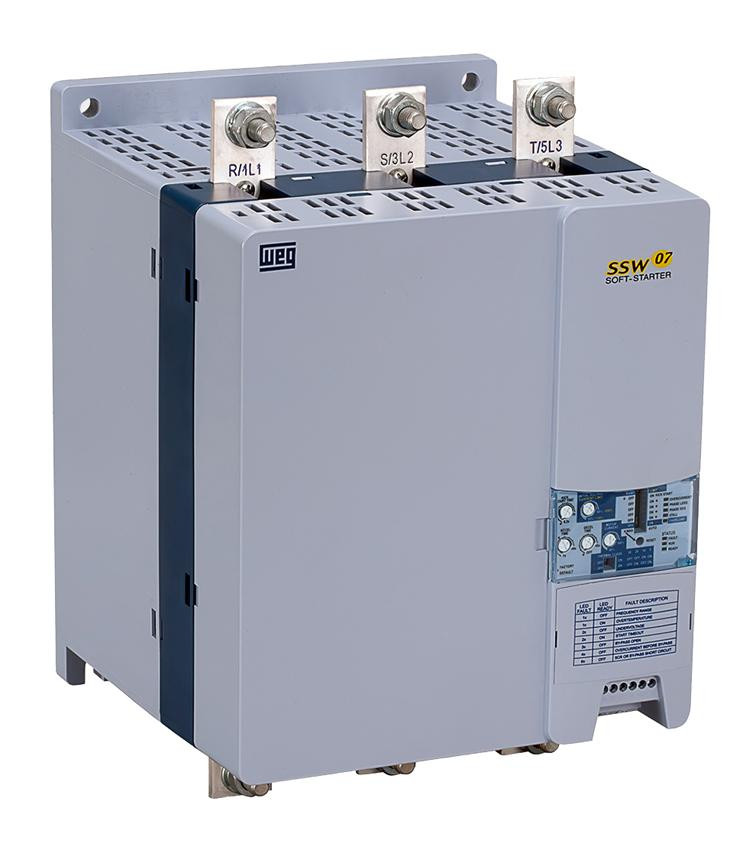

SSW070412T5SH1Z
Weg

SSW070412T5SH1Z

Alt: 11043370 (This Replaced SSW070412T5SZ, 11250213)

$3,713.68

Soft Starter, 412A: 150hp/230V, 350hp/460V, 400hp/575V, Three Phase, 120VAC Auxiliary Fan, 13.0 x 9.0 x 9.6" Frame Size 4, IP00, Built-In - Internal AC-1 Bypass, Control Voltage: 94-264VAC, Series SSW07

Weight:
44.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

  • Rated current: 412 A
  • Power supply: 220-575 V
  • Enclosure: IP00
  • Frame: 4
  • Built-in bypass
  • High starting duty
  • Total control on the three phases
  • Protection of the motor and built-in starter
  • "Kick-Start" function for starting loads with high static friction
  • Remote or local HMI (optional)
  • Input for the motor PTC (optional)
  • Operation in environments up to 55 °C
  • Extremely reduced weights and dimensions
  • RS-232, RS-485, DeviceNet or Ethernet communication (optional)
