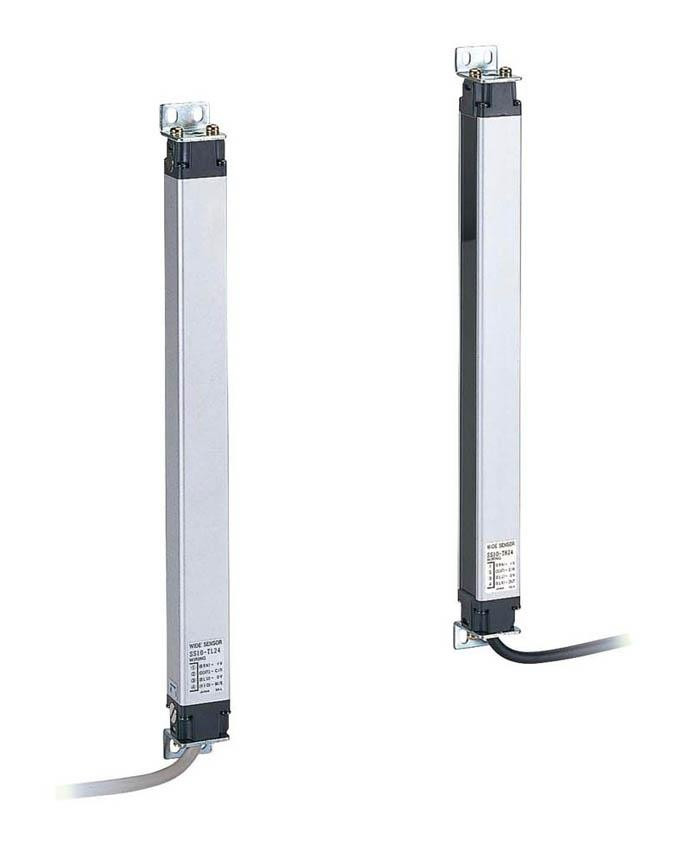

SS20-T40
$2,525.23
Light Curtain, Thru-Beam, NPN, Red LED, Cable, 7m Range, 40 Axes, Please Note Takex Has This Item Listed as Non-Cancelable/Non-Returnable.
- Minimum Purchase:
- 1 unit
Description
Sensor, Light Curtain, Through Beam, NPN, Red LED, Cable, 7000mm Range, 40 Axes
Features Include:
- Detection Method: Through beam
- Detection Distance: 4m
- Detection Object: Opaque dia.30mm or more (dia.35mm or more :when detecting distance is shorter than 0.5m)
- Beam Interval: 20mm
- Number of Beams: 17
- Detecting Width: 320mm
- Power Supply: 12-24VDC ±10% / Ripple 10% or less
- Current Consumption: 104mA or less
- Output Mode: NPN/PNP open collector output Load current: 50mA (30VDC) or less Residual voltage: 2V or less
- Operation Mode: Activated when beams of all optical axis are received, deactivated when beam of any optical axis is blocked
- Response Time: 30ms or less
- Light source: Infrared LED (wavelength: 850nm)
- Material: Case: Aluminum, Front cover : Polycarbonate, Top and End parts : Zinc die-cast
- Weight: Approx. 350-1,000 g (transmitter/receiver)
Indicator:
- Transmitter: Power indicator (green LED), Slave indicator (blue LED)
- Receiver: Power / Light reception stability indicator (green LED), Operation indicator (orange LED)
Auxiliary Functions:
- Automatic sensitivity compensation function
- Mutual interference prevention
- Reversed power polarity protection
- Output short circuit protection
Connection:
- Attached cable (outer diameter : dia.3.5mm)
- Transmitter: 0.15mm2 x 4 cores 3m (gray)
- Receiver: 0.15mm2 x 5 cores 3m (black)
Weight:
- Transmitter: Approx.185g
- Receiver: Approx.190g
Environmental Specifications:
- Ambient Light: 10,000 lx or less
- Ambient Temperature: –10 - +55C° (non-freezing)
- Ambient Humidity: 35 - 85%RH (non-condensing)
- Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
- Shock 300 m/s2 / 3 times each in 3 directions
- Dielectric withstanding: 1000 VAC for 1 minute
- Insulation resistance: 500 VDC, 20 MΩ or higher
