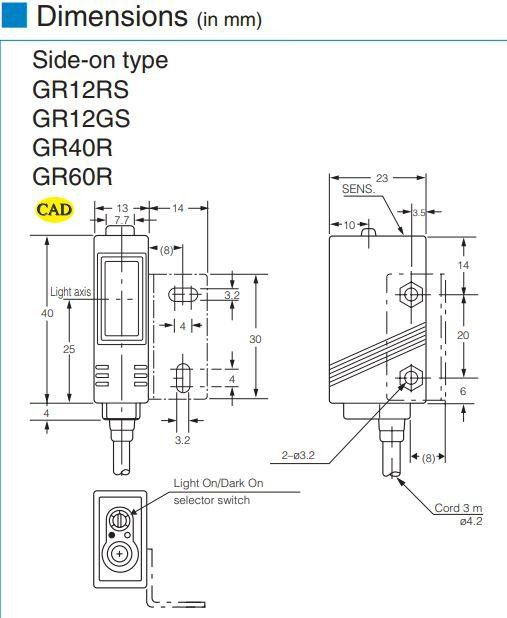

GR12GN-PN

Features Include:

• IP67 rated housing filled with resin allows washing together with line equipment
• Detection Method: Convergent reflective
• Detection Distance: 12mm ± 2mm
• Detection Object: Opaque, translucent, and transparent
• Power Supply: 12-24V DC±10% / Ripple 10% or less
• Current Consumption: 30mA or less
• Operation Mode: Light-ON / Dark-ON selectable (with switch)
• Mutual interference prevention function: Provided (up to 2 sensors)
• Spot Diameter: dia.1mm
• Response Time: 0.5ms or less
• Light Source: Green LED (525nm)
• Connection: Cable type (outer diameter: dia.4.2mm) 0.3 mm2 x 3 cores, 2 m
• Volume (VR): 4 turn sensitivity adjustment without stopper provided
• Switch (SW): Light-ON / Dark-ON selector switch
• Anti Interference feature: Available (up to two units‚àö√Ƭ¨‚à´‚àö¬¢
• Material: Case: Polybutylene terephthalate, Lens: Methacrylate
• Weight: approx. 80g

Output Mode:

• PNP open collector
• Rating: source current 100mA (30 VDC) or less

Indicator:

• Red LED: Light reception indicator
• Green LED: Stability Indicator

Connection:

• Attached cable (dia.3.5mm)
• Transmitter: 0.2 mm2 x 2 cores 2m (gray)
• Receiver: 0.2 mm2 x 3 cores 2m (black)

Environmental Specifications:

• Ambient Light: 3,000 lx or more
• Ambient Temperature: -25°C - +55°C (non-freezing)/Storage -30°C- +70°C
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 1000 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,000 VAC for 1 minute
• Insulation resistance: 500 VDC, 20 MΩ or higher
• Shock: 1000 m/s2 / 3 times each in 3 directions
