Available Now!
Available Now!
(2 in stock)
EX9PBG41
Alt: 1200533
$10.29

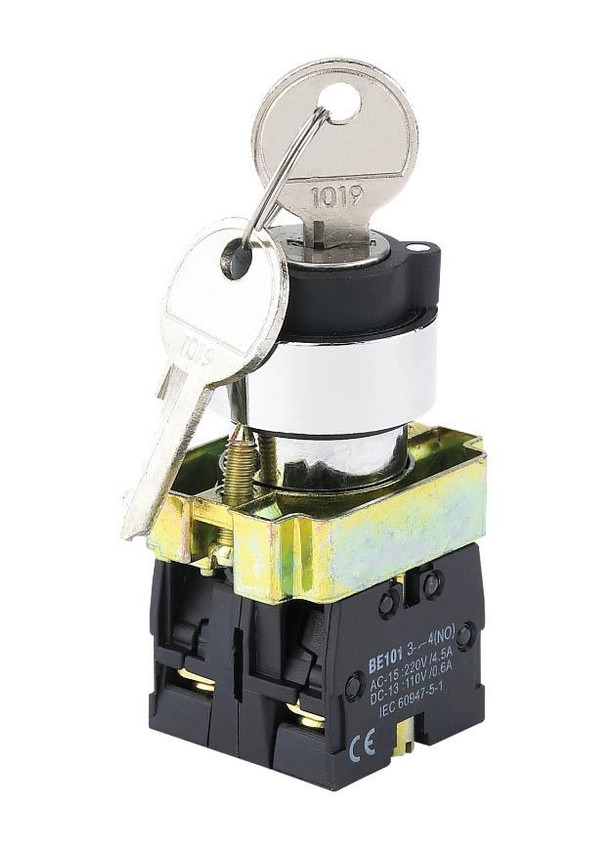

Pushbutton, Non-Illuminated, Ex9PB, Selector Switch, Key, 2-Position, Reset, Left Key, 1NO
- Minimum Purchase:
- 1 unit
Description
Selector Switch, Key, 2-Positions - Reset 1NO
Features Include:
- Robust design and metalic construction for durability and visual appeal.
- UL/IEC listed and labeled IP 40* (front) for protection against dust and water
- Mounted in a standard round 7/8" (22.5 mm) hole.
- Modular construction enables quick assembly and simplifies stocking of components as well as assembled components.
Certification
UL 508 Recognized
Certification File
E353865
Compliant to
CSA C22.2 No. 14, IEC/EN 60947-5-1, VDE 0660, CE, RoHS
Type
Non-Illuminated
Color
Black
Number of Positions
2, 3
Positions
2-Position = 1-Locking, Reset, 2-Locking; 3-Position = Middle Locking, Reset, 3-Locking
Positions and Contacts
2-Position = 1NO, 1NC, 2NO, 2NC, 1NO+1NC; 3- Position = 2NO, 2NC or 1NO+1NC
Rated Operational Voltage Ue (V)
125, 240, 415
Rated Operational Current (mA) @ 15 Vac
125 = NA, 240 = 3, 415 = 1.9
Rated Operational Current (mA) @ 13 Vdc
125 = 0.55, 240 = 0.27, 415 = NA
